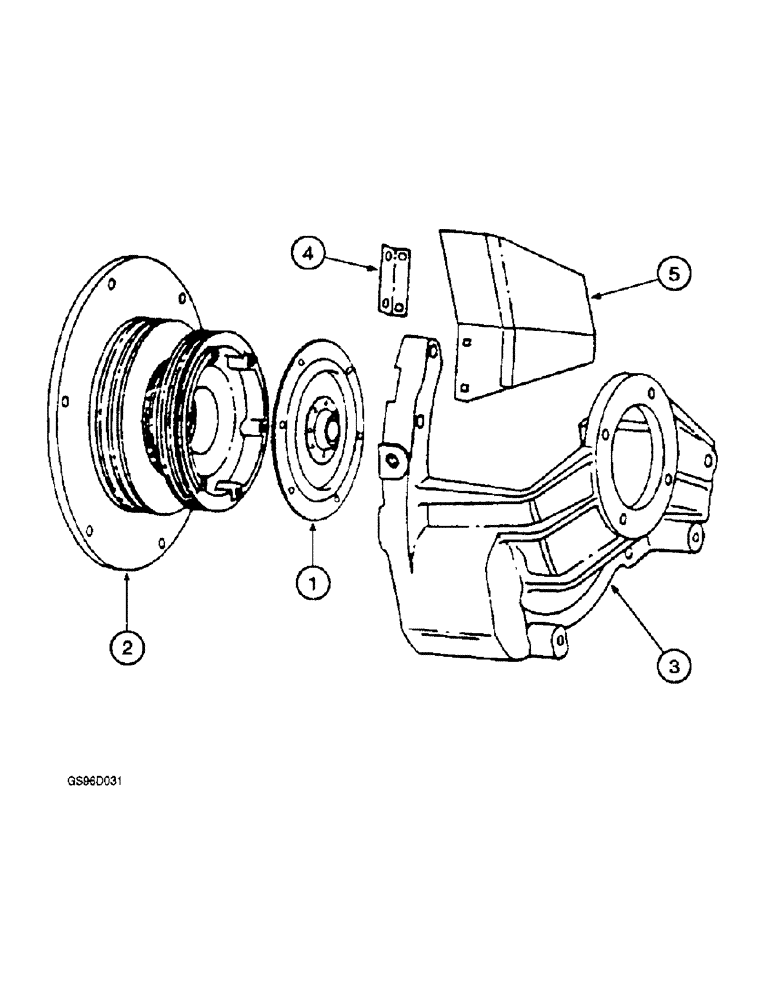

Запчасти Case IH 1400 (6-02) - CLUTCH (03) - POWER TRAIN

1

107691C92

LARGE PLATE

PLATE, LARGE PLATE - hydrostatic drive

1шт.

1

107691C92R

REMAN-CLUTCH PLATE

Clutch Plate, For N.A. only

1шт.

1

107691C92C

CORE-CLUTCH PLATE

Return number - For N.A. only

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

6шт.

2

131425C1

PULLEY

PULLEY - fan drive

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

BOLT - pre-torque, 3/8 NC x 1-1/4 inch

6шт.

3

131428C92

CASE

HOUSING - clutch

1шт.

37-1816

DOWEL,1/2" x 1"

DOWEL - 1/2 x 1 inch, hardened (Replaces dowel 19904R1)

2шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

BOLT - hex, 1/2 NC x 3-1/4 inch (Replaces bolt 180191)

2шт.

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

BOLT - hex, 1/2 NC x 6-1/2 inch (Replaces bolt 189315)

2шт.

484496R1

SPARE PART BOLT - hex, 1/2 NF x 9-1/2 inch Hex, 1/2"-20 x 9 1/2", G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

5шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

425-118

NUT,1/2"-20, G5

NUT - hex, 1/2 inch NF (Replaces nut 120371)

1шт.

4

1251187C1

ANGLE

BRACKET - guard mount

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT, (Replaces bolt 180179) Hex, 1/2"-13 x 1 3/4", G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

2шт.

5

1251190C1

GUARD

GUARD - clutch

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

2шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, (Replaces washer 120382) 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

NUT, (Replaces nut 120377) 3/8"-16, G5

2шт.
