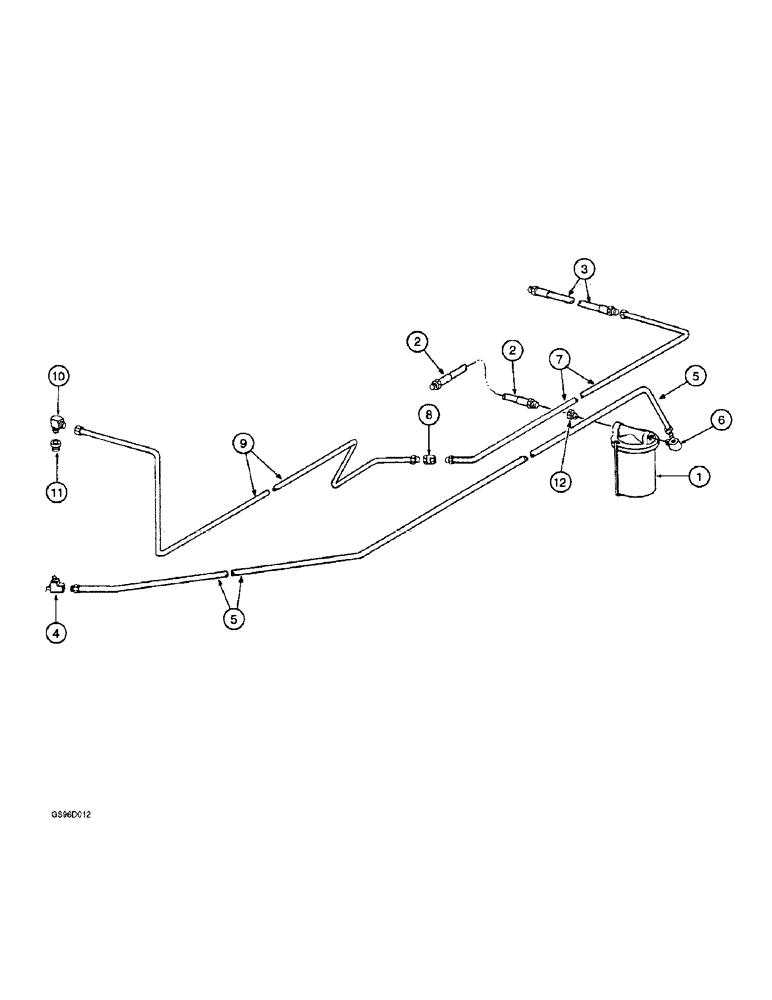

Запчасти Case IH 1400 (3-06) - FUEL LINES AND FILTER SYSTEM (02) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSEMBLY - water, parts list page 3-5

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch (Replaces bolt 180022)

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

2

215068C2

HOSE ASSY.

HOSE - fuel supply

1шт.

3

215069C1

HOSE ASSY.

HOSE - fuel return

1шт.

4

390069R91

SHUT-OFF VALVE

VALVE - fuel shut-off

1шт.

5

REF

INSTRUCTION

TUBE - fuel tank to water trap, 118 inch (2997 mm) long, cut from bulk tubing 995063R1 below

1шт.

6

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

(Replaces elbow 193004) 90º, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

REF

INSTRUCTION

TUBE - fuel return front, 42 inch (2718 mm) long, cut from bulk tubing 995062R1 below

1шт.

8

222-1054

HYD CONNECTOR,5/16" Inv Fl

COUPLING - 1/2-20 inch inverted flare (Replaces fitting 442337)

1шт.

9

REF

INSTRUCTION

TUBE - fuel return rear, 76 inch (1930 mm) long, cut from bulk tubing 995062R1 below

1шт.

10

222-1024

ELBOW,90 Degree, 1/2"-20 Inv Fl x 1/8" NPT

- 90 degree, 1/2-20 inverted flare x 1/8 inch PT (Replaces elbow 442411)

1шт.

11

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- pipe, 1/4 PT x 1/8 inch PT (Replaces reducer 444024)

1шт.

12

442364

FITTING - inverted flared tube, 90 degree x 1/4 inch NPT

1шт.

995063R1

TUBE

- bulk, 3/8 inch OD, 50 foot (15240 mm) roll

1шт.

995062R1

TUBE

- bulk, 5/16 inch OD, 50 foot (15240 mm) roll

1шт.
