(3-04) - WATER FILTER

Запчасти Case IH 1400 (3-04) - WATER FILTER (02) - FUEL SYSTEM

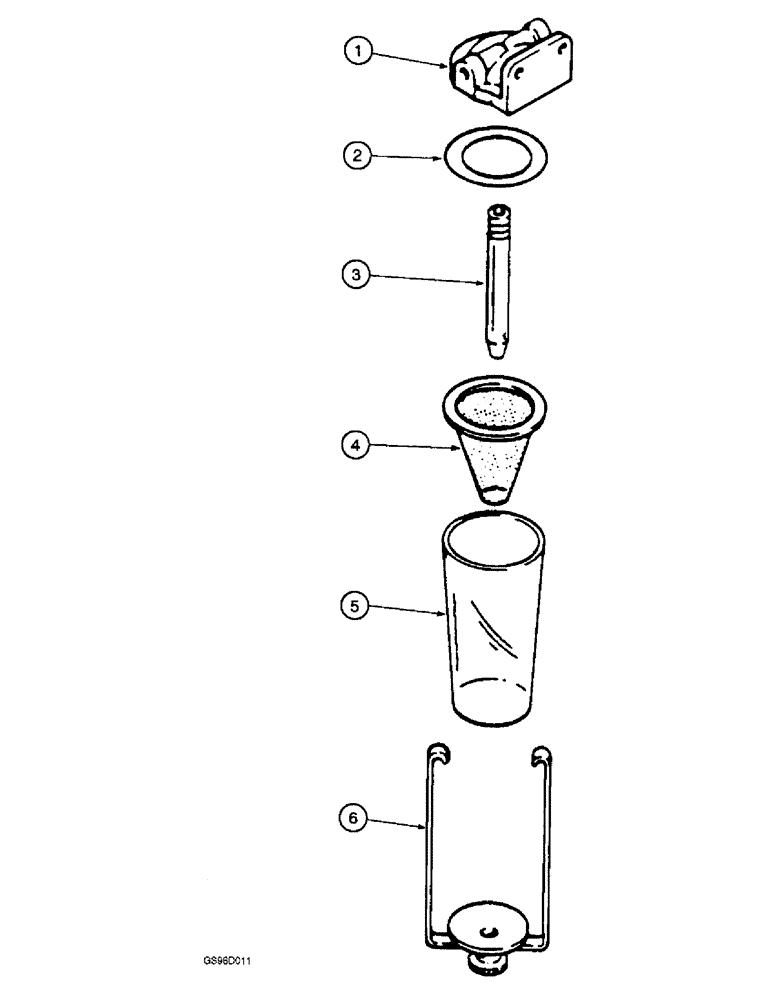

Схема запчастей Case IH 1400 - (3-04) - WATER FILTER (02) - FUEL SYSTEM
1
5
4
3
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

672821R91

FILTER

ASSEMBLY - water, no longer available, order filter assembly R18798

1шт.

R18798

STRAINER ELEMENT

FILTER ASSEMBLY - sediment, fuel

1шт.

1

R21356

HOUSING

BODY - sediment bowl

1шт.

2

370520R1

GASKET

- sediment bowl (Replaces gasket R21357)

1шт.

3

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

4

370784R91

FILTER SCREEN

SCREEN - sediment bowl (Replaces screen R21359)

1шт.

5

R21361

BOWL

- sediment

1шт.

6

370785R91

CLAMP

RETAINER - sediment bowl (Replaces retainer R21358)

1шт.
