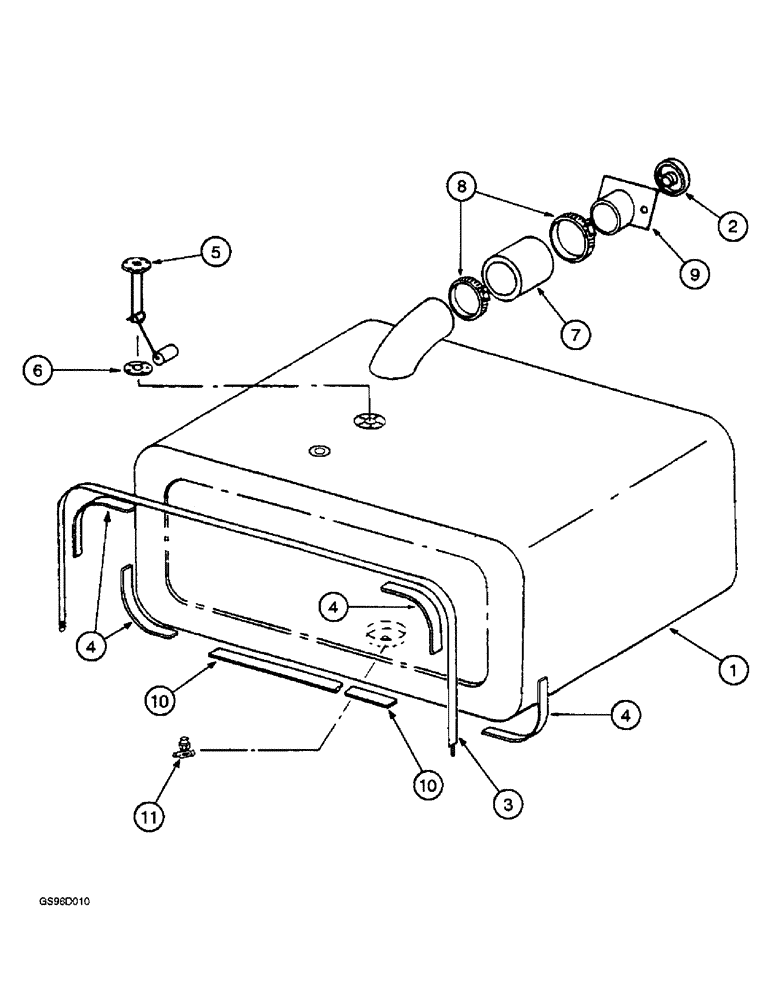

Запчасти Case IH 1400 (3-02) - FUEL TANK AND CONNECTIONS (02) - FUEL SYSTEM

1

215280C2

FUEL TANK

TANK - fuel

1шт.

2

23995DC

FILLER CAP

CAP - fuel tank

1шт.

3

214835C1

BAR

CLAMP - fuel tank

2шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolts 16897R1 and 598802R1)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

4

666210R1

FIXING STRIP

STRIP - lining, tank support, 9-7/64 inch (231 mm) long, cut from bulk strip 990541R1 below

8шт.

5

1341317C1

TRANSMITTER

UNIT - fuel level sending (Replaces unit 209331C1)

1шт.

423595

SCREW,Hex Hd, #10-24 x 1/2", w/LW

- machine, No. 10 NC x 1/2 inch

5шт.

6

104812C3

GASKET,3.05mm Thk

- sending unit (Replaces gasket 104812C1)

1шт.

7

215553C1

HOSE,63.50 mm ID x 89.00 mm, SAE 30R1, SAE J30B

- Fuel tank tube 63.50 mm ID x 89.00 mm, SAE 30R1, SAE J30B

1шт.

8

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adjustable, 2-9/16 - 3-1/2 inch diameter (Replaces clamp 279029R91)

2шт.

9

215284C1

NECK FILLER

NECK - fuel tank filler

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

10

REF

INSTRUCTION

STRIP - seal, 300 inch (7620 mm) long, cut from bulk seal 73215C1 below

1шт.

11

118536

VALVE

- drain, 3/8 inch taper

1шт.

73215C1

GASKET

SEAL - bulk, 40 foot (12192 mm) roll

1шт.

990541R1

FIXING STRIP

STRIP - bulk, lining, 1-1/4 (32) wide x 600 inch (15240 mm) long

1шт.
