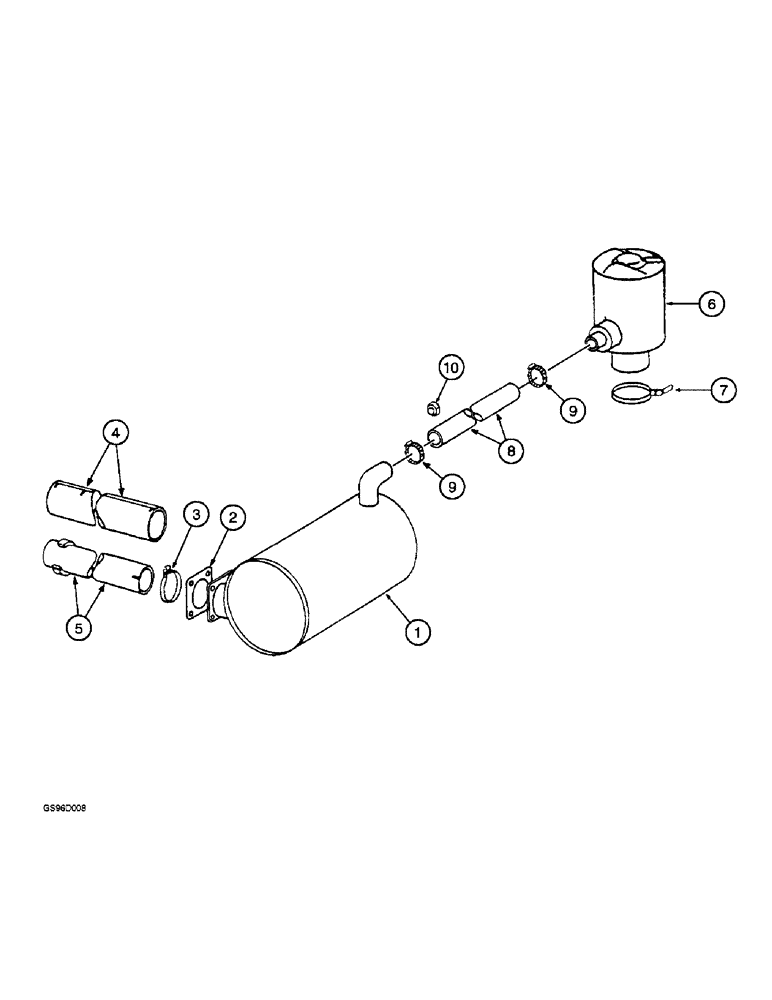

Запчасти Case IH 1400 (2-16) - EXHAUST SYSTEM (01) - ENGINE

1

222194C1

MUFFLER

- exhaust

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF (Replaces nut 120369)

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

1

221952C1

MUFFLER

- with spark arrestor, used with machines, Serial Range: shipped-California

1шт.

444590

PLUG

- brass, 1/2 inch PT

1шт.

205-126

HOLE PLUG BUTTON,1 3/4"

PLUG - button, 1-3/4 inch ID (Replaces plug 432564)

1шт.

2

673331R2

SHIM

GASKET - exhaust muffler

1шт.

3

549906C91

CLAMP

- muffler (Replaces clamp 222306C1)

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

4

214825C2

TUBE

- exhaust shield (Replaces tube 214825C1)

1шт.

24240R1

SCREW - pan head slotted, No. 10 NC x 3/8 inch

7шт.

5

222307C1

EXHAUST SYSTEM PIPE

PIPE - exhaust

1шт.

6

146501C1

MAKING-UP

PRE-CLEANER - aspirated, not for use with California machines

1шт.

7

222192C1

CLAMP

- aspirated, pre-cleaner, not for use with California machines

1шт.

8

222193C1

HOSE

- aspirated, pre-cleaner, not for use with California machines

1шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj., Aspirated, Pre-cleaner hose, not for use with California machines (Replaces clamp 311164C91) #20, 0.81/1.75 Type F Worm

1шт.

10

587215R1

GROMMET,1 1/2" ID x 2 1/8" x .062"

- rubber

1шт.

10

205-126

HOLE PLUG BUTTON,1 3/4"

PLUG - button, 1-3/4 inch ID, used with California machines (Replaces plug 432564)

1шт.
