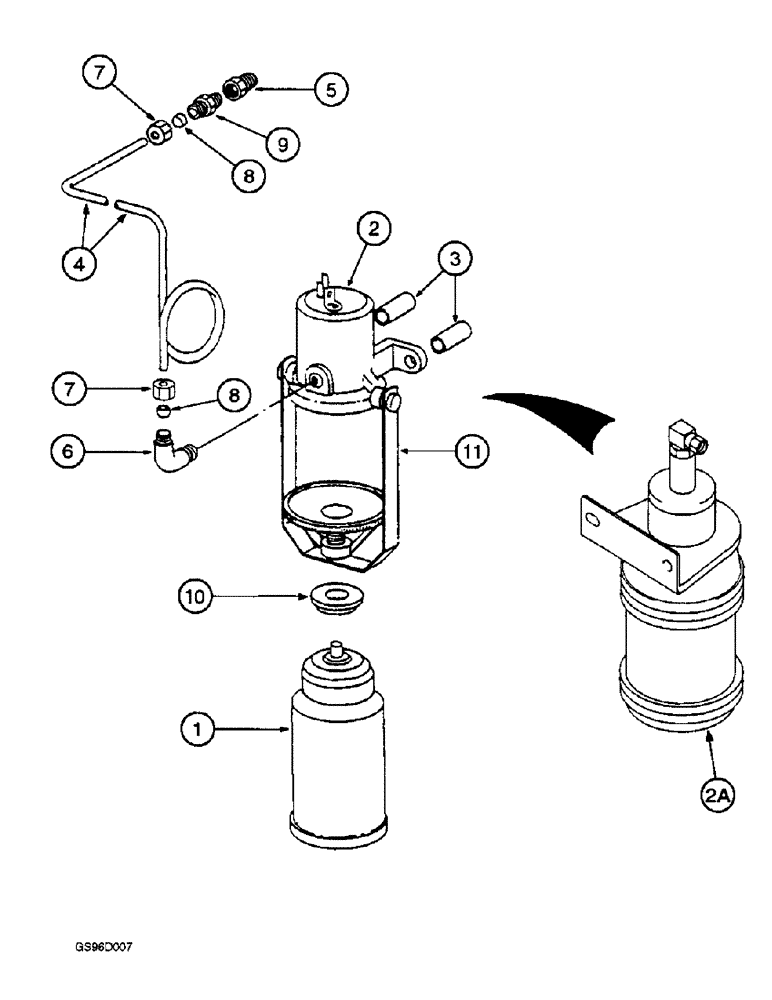

Запчасти Case IH 1400 (2-14) - ETHER STARTING SYSTEM (01) - ENGINE

1

385064R91

FLUID

- ether starting, 12 oz. can, used with solenoid 533231R92, ship direct from vendor

1шт.

2

533231R92

SOLENOID

- ether injection, no longer available, order solenoid 185552A2, item 2A below

1шт.

2a

185552A2

SOLENOID

- ether injection, 12 volt (Replaces solenoid 533231R92)

1шт.

3

201887C1

SPACER

TUBE - spacer solenoid, used with solenoid 533231R92

2шт.

4

251182C1

TUBE - starting fluid, no longer available

1шт.

5

269635R91

NOZZLE CAP

NOZZLE - starting fluid

1шт.

6

140304

ELBOW

- 90 degree x 1/8 inch NPT (Replaces elbow 140303)

1шт.

7

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD (Replaces nut 121220) 5/16"-24, 45º Fl, Comp

2шт.

8

222-650

SLEEVE,1/8" Tube, Comp

- tapered, 1/8 inch tube OD (Replaces sleeve 121322)

2шт.

9

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT (Replaces connector 140284)

1шт.

10

395686R1

GASKET

- ether injection solenoid, used with solenoid 533231R92

1шт.

11

121851C1

RETAINER

BAIL - injector

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch (Replaces bolt 180083)

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.
