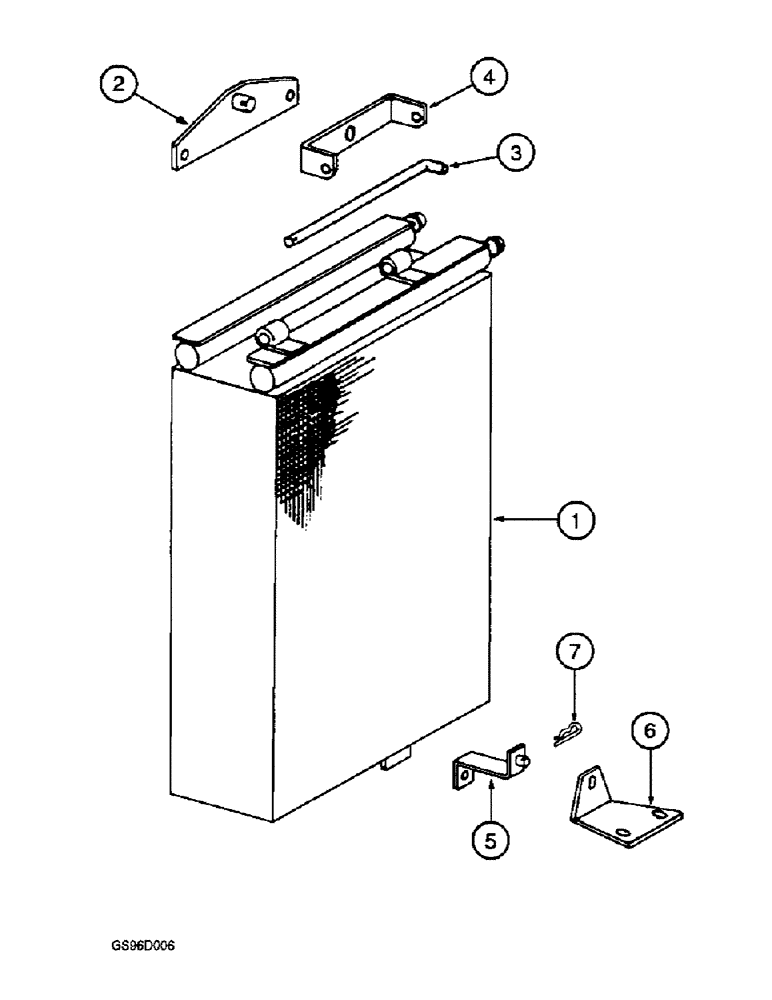

Запчасти Case IH 1400 (2-12) - OIL COOLER AND SUPPORT (01) - ENGINE

1

536349R1

COOLER

- oil

1шт.

2

215705C1

BRACKET

- fixed anchor

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

3

215713C1

ROD

- oil cooler hinge

1шт.

4

215708C1

SUPPORT

- oil cooler hinge

1шт.

618678R1

WASHER - flat, 17/32 x 1-1/4 inch x 9 gauge

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

(Replaces pin 20328R1) 3/16" x 1 1/2"

1шт.

5

215702C1

BRACKET

- fixed anchor

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

1шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

1шт.

6

215701C1

SUPPORT

- movable anchor

1шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

1шт.

7

153528C1

COTTER PIN

- spring

1шт.
