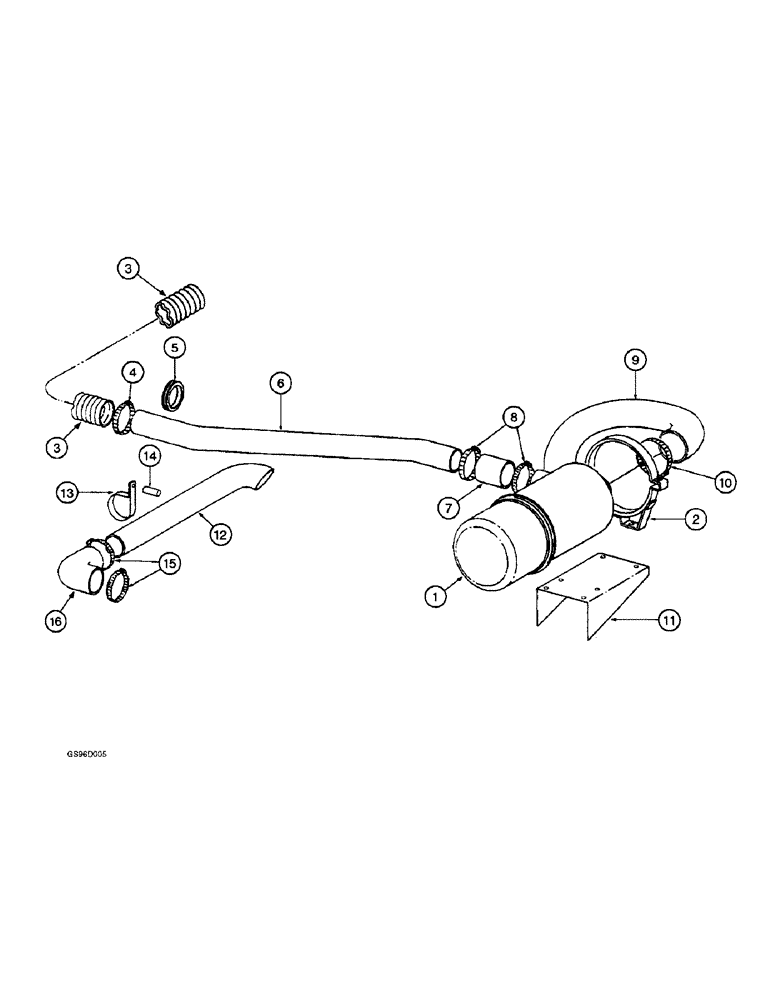

Запчасти Case IH 1400 (2-10) - AIR CLEANER AND CONNECTIONS (01) - ENGINE

1

146456C91

CLEANER ASSY.

CLEANER ASSEMBLY - air, dry type, parts list page 2-9

1шт.

2

603697C91

CLAMP

BAND - mounting, optional with bands 978194R91 and 346667R91

2шт.

2

978194R91

BAND - mounting, optional with bands 603697C91 and 346667R91

2шт.

2

346667R91

BAND - mounting, no longer available

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

3

222391C1

INTAKE AIR HOSE,103.12 mm ID x 1447.80 mm

- Air Cleaner Inlet, Not for use with machines shipped to California 103.12 mm ID x 1447.80 mm

1шт.

4

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., Muffler, Not for use with machines shipped to California (Replaces clamp 985851R91) #64, 3.56/4.50 Type F Worm

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

5

222300C1

GROMMET

- pipe

1шт.

6

222301C1

AIR INTAKE TUBE

TUBE - air intake

1шт.

7

222302C1

HOSE

- air cleaner

1шт.

8

214-1564

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm, W/ Liner

CLAMP - hose (Replaces clamp 397258R1)

2шт.

9

222298C1

INTAKE AIR HOSE,75.00 mm ID

- Elbow 75.00 mm ID

1шт.

10

146569C1

CLAMP

- hose

2шт.

11

216404C1

SUPPORT

- air cleaner

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

386170C1

CABLE TIE,.30" x 27 1/2"

TIE - cable

1шт.

12

222304C1

TUBE

- air inlet, for use with California machines

1шт.

13

222303C1

CLAMP

- pipe, for use with California machines

1шт.

14

65881H

SPACER,1/4" Pipe x 1 1/4"

- standard pipe, 1/4 x 1-1/4 inch, for use with California machines

1шт.

15

214-1564

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm, W/ Liner

CLAMP - hose, for use with California machines

2шт.

16

222305C1

HOSE,94.0 mm ID

- elbow, for use with California machines

1шт.
