(2-08) - AIR CLEANER

Запчасти Case IH 1400 (2-08) - AIR CLEANER (01) - ENGINE

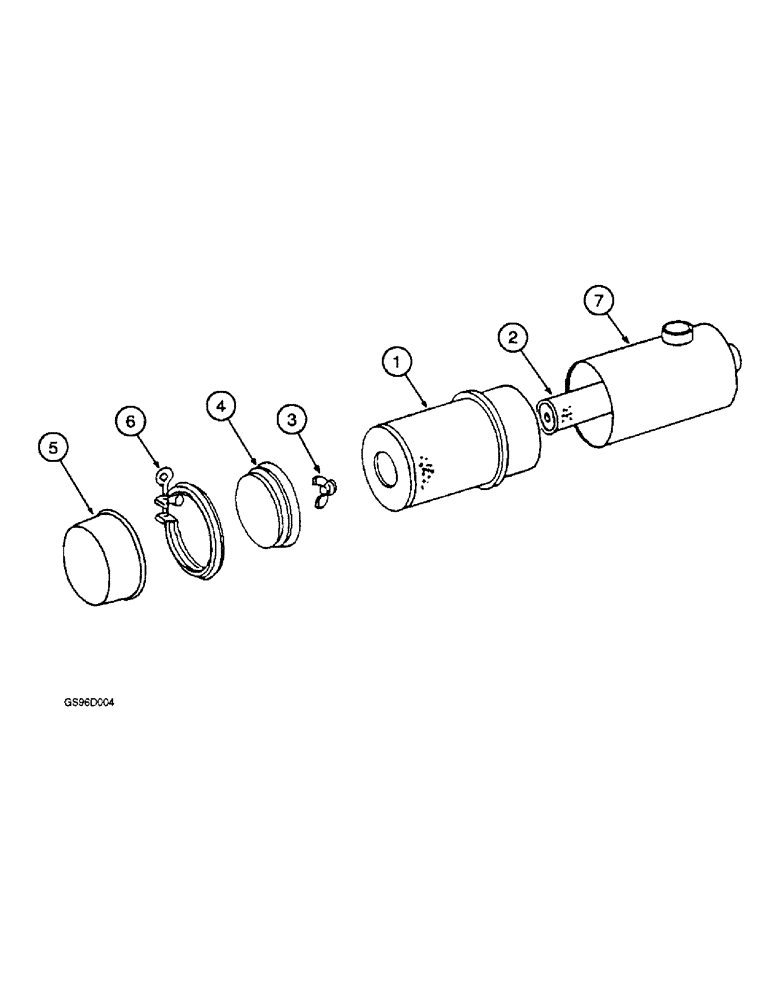

Схема запчастей Case IH 1400 - (2-08) - AIR CLEANER (01) - ENGINE
2
7
3
4
6
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

146456C91

CLEANER ASSY.

CLEANER ASSEMBLY - air, dry type

1шт.

1

690049C2

AIR CLEANER

ELEMENT - air cleaner, primary (Replaces element 690049C1)

1шт.

2

529852R5

AIR FILTER

ELEMENT - air cleaner, secondary

1шт.

3

D78354

WING NUT

NUT - air cleaner (Replaces nut 381342R92)

1шт.

4

404193R1

BAFFLE

- air cleaner

1шт.

5

404194R1

COVER

CUP - air cleaner

1шт.

6

NLS

NO LONGER SERVICED

CLAMP - air cleaner (Replaces clamp 130879HB)

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - air cleaner, order cleaner assembly 146456C91

1шт.
