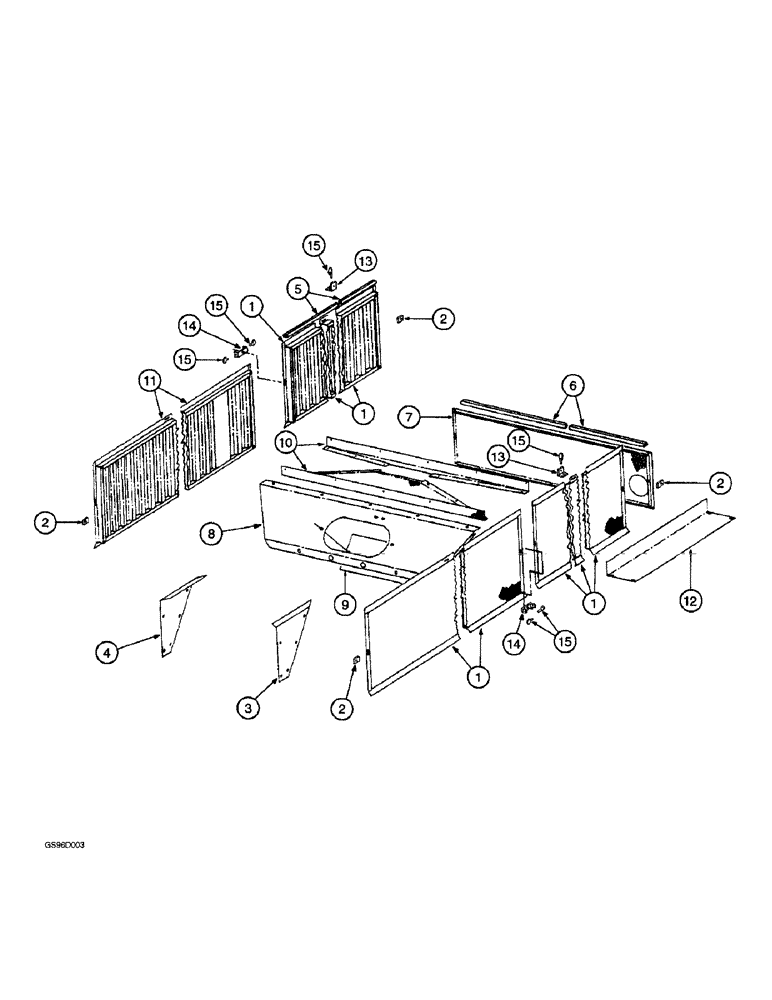

Запчасти Case IH 1400 (2-06) - RADIATOR SCREENS (01) - ENGINE

1

219897C1

HOUSING

CLEANER - engine and radiator side

1шт.

2

216162C1

BAR

- cleaner screen support

4шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 180079)

4шт.

526712R1

BUSHING

SPACER - standard pipe, 1/4 x 9/16 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

3

217927C1

SUPPORT

- radiator cover, left-hand

1шт.

4

217928C1

SUPPORT

- radiator cover, right-hand

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt 180073)

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

6шт.

5

REF

INSTRUCTION

SEAL - cleaner side, 159 inch (4031 mm) long, cut from bulk seal 1263038C1 below

2шт.

6

REF

INSTRUCTION

SEAL - cleaner side screen, 43 inch (1092 mm) long, cut from bulk seal 1263038C1 below

2шт.

7

219895C1

SCREEN

- rear

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch (Replaces bolt 180022)

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

5шт.

252552C1

NUT

- hex, 1/4 inch NC

5шт.

8

214678C1

SHIELD

- radiator bottom

1шт.

131-137

SPRING NUT,Ret, 5/16"-18

Speed grip (Replaces nut 481556C1) Ret, 5/16"-18

2шт.

9

214679C1

BAR

- radiator bottom shield cover

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

6шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

5шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (Replaces washer 120394) 3/8", SAE

5шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

5шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

5шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 180079)

2шт.

10

219893C1

SUPPORT

- bolster filler sheet

2шт.

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch (Replaces screw 552897R1)

12шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 180020)

10шт.

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") (Replaces washer 120392) 1/4", SAE

10шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

10шт.

11

219984C1

HOUSING

CLEANER - front right-hand side

1шт.

12

219894C1

SUPPORT - fuel tank side

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

13

216479C2

CLIP

ANGLE - screen retainer

2шт.

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch (Replaces bolt 598794R1)

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

14

216480C2

CLIP

CHANNEL - screen center

2шт.

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch (Replaces bolt 598794R1)

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

15

A33497

LINCH PIN,4.76mm OD Pin

PIN - klik (Replaces pin 479696R91)

6шт.

1263038C1

SEAL,7620mm L

- bulk, 25 foot (7620 mm) roll

1шт.
