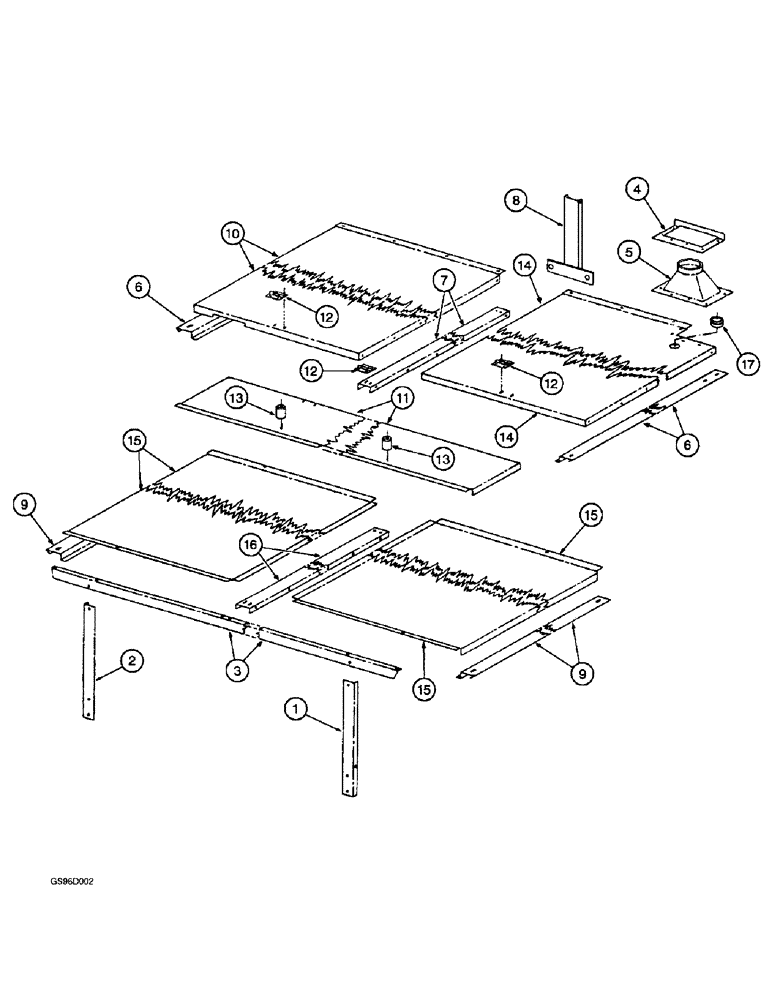

Запчасти Case IH 1400 (2-04) - RADIATOR AND ENGINE SHIELDS (01) - ENGINE

1

217754C1

ANGLE

- engine hood support, left-hand

1шт.

2

217755C1

ANGLE

- engine hood support, right-hand

1шт.

3

217756C1

ANGLE

- engine hood sheet

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

10шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

10шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

10шт.

4

215510C2

SUPPORT

- cylinder insulator

1шт.

5

215511C1

INSULATOR

- cylinder cover

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Replaces bolt 180020)

6шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

6шт.

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") (Replaces washer 120392) 1/4", SAE

6шт.

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

CLAMP - hose, adjustable

1шт.

6

220983C1

SUPPORT - radiator shield, left-hand

1шт.

6

215655C2

SUPPORT

- radiator shield, right-hand

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

8шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

8шт.

7

215836C1

CHANNEL

- radiator and engine cover

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

6шт.

550827R1

NUT - hex, 5/16 inch NC

6шт.

8

215657C1

SUPPORT

- cover channel

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

2шт.

9

217750C1

SUPPORT

- engine shield, left-hand

1шт.

9

217751C1

SUPPORT

- engine shield, right-hand

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

10

222187C1

SHIELD

- radiator and engine

1шт.

11

222190C1

SHIELD

- radiator

1шт.

12

215720C1

HINGE

- shield

3шт.

13

57220C1

BUMPER

- hood sheet

2шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF (Replaces nut 103025)

2шт.

14

215827C2

SHIELD

- radiator left-hand, rear

1шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Replaces bolt 180075)

8шт.

276-20912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping, hex head, 3/8 NC x 3/4 inch (Replaces screw 172482)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

12шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

12шт.

15

217749C2

SHIELD

- radiator and engine (Replaces shield 217749C1)

2шт.

16

217753C2

CHANNEL

- radiator and engine shield

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

8шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Replaces bolt 180075)

10шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

10шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

10шт.

17

432449

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2 inch diameter

1шт.
