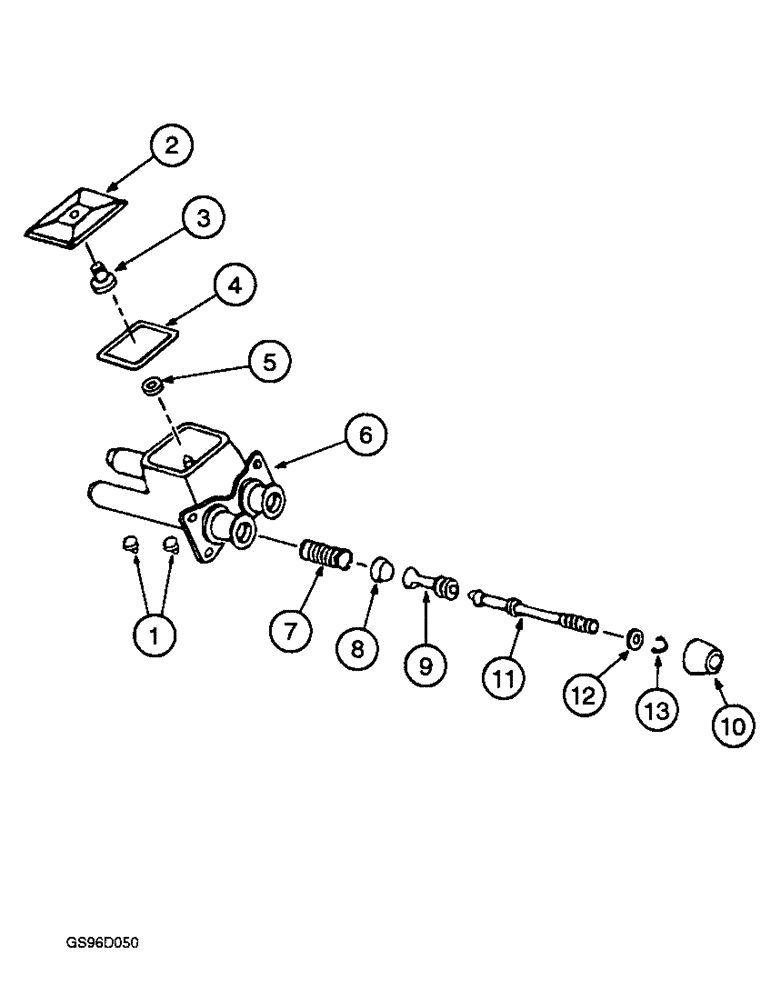

Запчасти Case IH 1400 (7-04) - MASTER BRAKE CYLINDER (5.1) - BRAKES

222534C91

CYLINDER ASSEMBLY - master brake

1шт.

1

222846CD1

INSERT - seat

2шт.

2

222843C1

CAP

- master cylinder filler

1шт.

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch (Replaces bolt 180050)

1шт.

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") (Replaces washer 120392) 1/4", SAE

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - automatic adjuster, order cylinder assembly 222534C91

1шт.

4

222844C1

GASKET

- filler cap

1шт.

5

222845C1

WASHER

RING - retainer

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - brake master cylinder, order cylinder assembly 222534C91

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - piston return, order kit 201594C1

2шт.

8

NSS

NOT SOLD SEPARAT

CUP - piston, order kit 201594C1

2шт.

9

NSS

NOT SOLD SEPARAT

PISTON - order kit 201594C1

2шт.

10

NSS

NOT SOLD SEPARAT

BOOT - master cylinder, order kit 201594C1

1шт.

11

222841C1

ROD

- push

2шт.

12

222842C1

WASHER

- stop

2шт.

13

NSS

NOT SOLD SEPARAT

RING - master cylinder lock, order kit 201594C1

1шт.

201594C1

PACKAGE

KIT - cylinder repair (Replaces kit 222835C91)

1шт.
