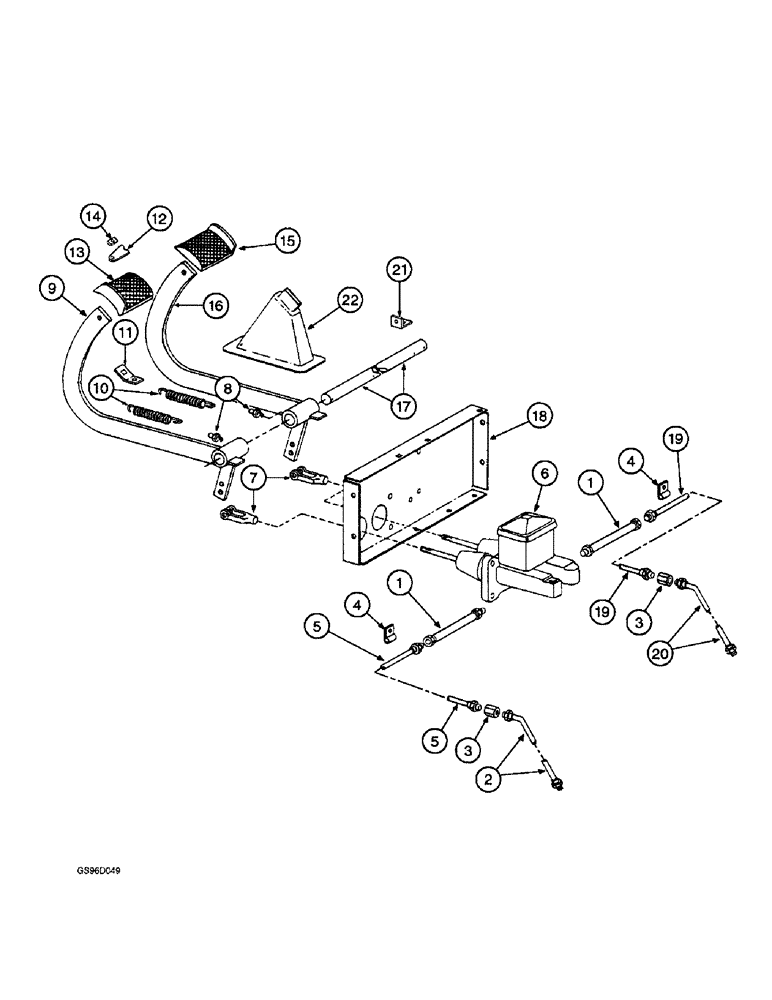

Запчасти Case IH 1400 (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES

1

201902C1

HOSE ASSY.

HOSE - brake

2шт.

2

220923C1

TUBE

- brake, lower left-hand

1шт.

3

222-1053

HYD CONNECTOR,1/4" Inv Fl

COUPLING - 7/16-24 inch inverted flare (Replaces union 442336)

2шт.

4

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch (Replaces clamp 299399C1)

6шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 3/4 inch (Replaces bolt 180020)

6шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

6шт.

5

215998C1

TUBE

- brake, upper right-hand

1шт.

6

222534C91

CYLINDER ASSEMBLY - master brake, parts list page 7-5

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 180124)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

7

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF (Replaces clevis 104038)

2шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN - clevis, 3/8 x 1-11/32 inch

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 177923) 1/8" x 3/4"

2шт.

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF (Replaces nut 124925)

2шт.

495-81140

WASHER,13/32" x 1 1/4" x .060"

flat, 13/32 x 1-1/4 x 1/16 inch (Replaces washer 178372R1)

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Replaces fitting 19588R91) 1/4"-28 x .56" lg, Self-Tap

1шт.

9

672833R92

PEDAL

- brake, left-hand

1шт.

10

48599DA

SPRING

- brake pedal return

2шт.

11

662387R1

ANCHOR

CLIP - spring anchor

1шт.

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18673R1)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

1шт.

12

43751DB

LATCH, PEDALS

LOCK - pedal

1шт.

23329R1

RIVET - binding head, 1/4 x 1-1/4 inch

1шт.

13

627511R91

PAD - brake pedal, left-hand

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 180124)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

14

51293DO

SPRING

- lock

1шт.

15

627510R1

PAD - brake pedal, right-hand

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 180124)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

16

209901C1

PEDAL

- brake, right-hand

1шт.

17

209903C1

ROD

- brake and clutch

1шт.

18

209904C1

CHANNEL

- platform and brake cylinder support

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

14шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

14шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolts 16897R1 and 598802R1)

8шт.

19

215997C1

TUBE

- brake, upper right-hand

1шт.

20

220924C1

TUBE

- brake, lower right-hand

1шт.

21

165900C1

ANGLE

CLIP - brake and clutch shaft

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Replaces bolt 180073)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

(Replaces pin 187988) 3/16" x 1 1/4"

2шт.

495-81055

WASHER,29/32" x 1 3/8" x .134"

- flat, 29/32 x 1-3/8 x 1/8 inch (Replaces washer 21762R1)

3шт.

22

198074C1

ISOLATOR

BOOT - foot pedal

2шт.
