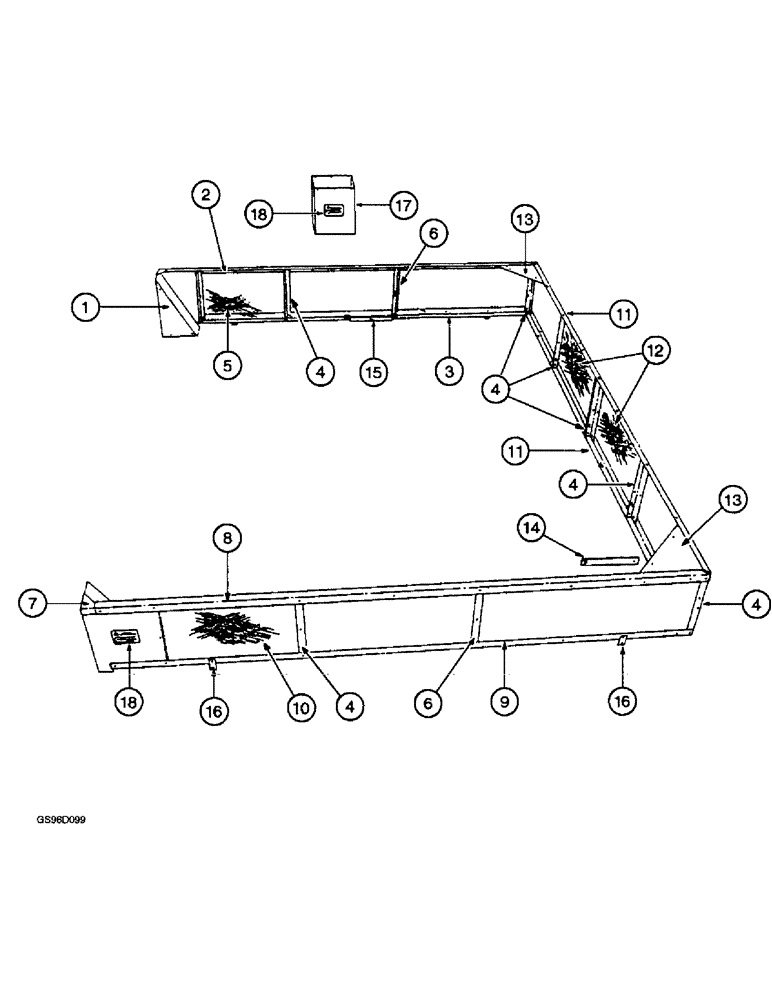

Запчасти Case IH 1400 (9C-08) - BASKET EXTENSION ATTACHMENT (16) - BASKET

1

1251244C1

SUPPORT

- bracket extension, front, also order decal 222174C1, item 18

1шт.

2

221127C1

ANGLE

- basket end, upper front

1шт.

3

221087C1

ANGLE

- basket extension, front

1шт.

4

221080C1

ANGLE

- extension support

10шт.

5

221129C1

SCREEN

- basket extension, front

1шт.

6

221081C1

ANGLE

- extension support

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

33шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

33шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

33шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 20803R1)

9шт.

7

1251245C1

SUPPORT

- basket extension, rear, also order decal 222174C1, item 18

1шт.

8

221128C1

ANGLE

- basket end, upper rear

1шт.

9

221175C1

ANGLE - basket extension, rear

1шт.

10

221129C1

SCREEN

- basket extension, rear

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 1/2 NC x 1 inch (Replaces bolt 180122)

19шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

33шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

33шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 20803R1)

9шт.

11

221153C1

ANGLE

- basket side, top

2шт.

12

221155C1

SCREEN

- extension, right-hand side

2шт.

13

672714R1

BRACE

- corner

2шт.

14

673702R1

STRIP

- basket corner brace filler

8шт.

15

216049C1

SUPPORT

- step

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 180126)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

18шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 180124)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

38шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

38шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/31 x 1 x 1/8 inch (Replaces washer 20803R1)

14шт.

16

221079C1

BAR

- basket extension retainer

6шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

17

1251246C1

CHUTE ASSY.

CHUTE - elevator extension, also order decal 222174C1, item 18

1шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, (Replaces bolt 598801R1) Short NK, 5/16"-18 x 1/2", G5, Full Thd

12шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

12шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

12шт.

19882R1

BOLT - hex, 5/16 NC x 3/4 inch

12шт.

18

222174C1

DECAL - warning

2шт.
