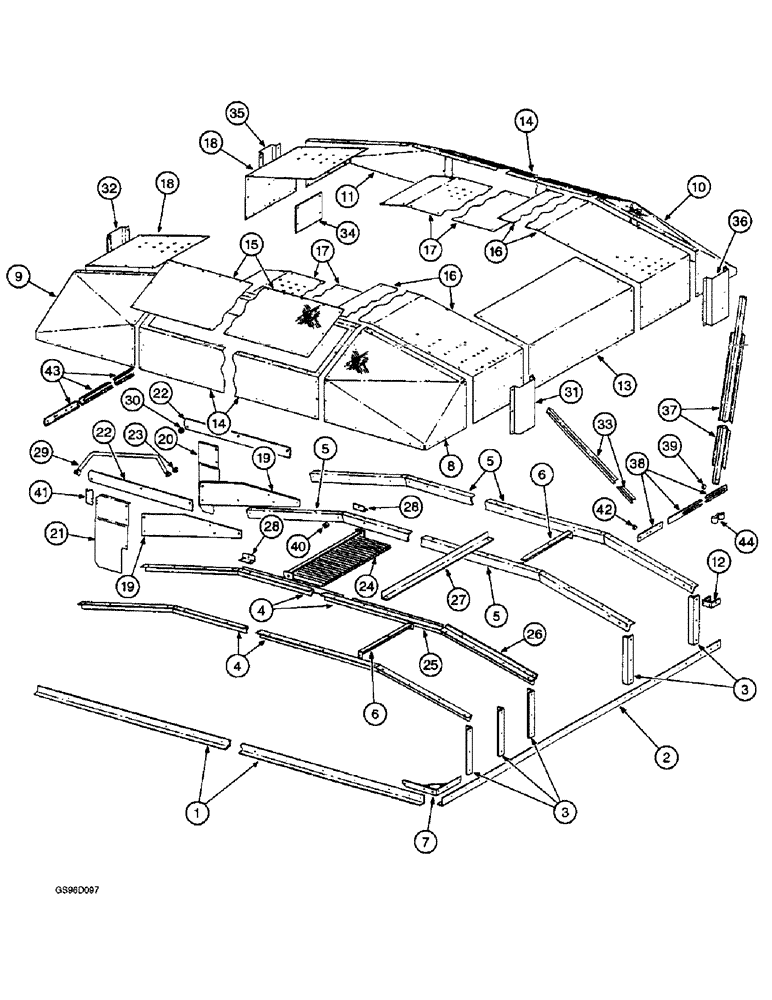

Запчасти Case IH 1400 (9C-04) - BASKET COVER (16) - BASKET

1

214816C2

ANGLE

- basket cover side

2шт.

2

221231C1

ANGLE

- basket cover ends

2шт.

3

222163C1

ANGLE

- basket grate support

12шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

8шт.

4

220707C1

ANGLE

- basket grate support, left-hand

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

5

220708C1

ANGLE

- basket grate support, right-hand

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

6

220710C1

SUPPORT

- basket cover

18шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

36шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

36шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

36шт.

7

672714R1

BRACE

SUPPORT - basket cover corner brace

4шт.

8

222083C1

SHIELD

SECTION - basket cover corner, left-hand rear

1шт.

9

222164C1

VALVE BLOCK

SECTION - basket cover corner, left-hand front

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

40шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

40шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

40шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

40шт.

10

222084C1

SHIELD

SECTION - basket cover corner, right-hand rear

1шт.

11

222165C1

ASSEMBLY

SECTION - basket cover corner, right-hand front

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

36шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

36шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

36шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

36шт.

12

672764R1

HINGE

- basket cover

3шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

6шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

6шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

6шт.

590275R1

HEADED PIN,7/16" x 4 3/4"

PIN - headed, 7/16 x 4-3/4 inch

3шт.

432-1216

COTTER PIN,3/16" x 1"

(Replaces pin 103407) 3/16" x 1"

3шт.

13

220706C1

SUPPORT

- rear grate cover

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

13шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

13шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

13шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

13шт.

14

222085C1

SUPPORT

- basket cover center section

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

24шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

24шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

24шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

24шт.

15

222081C1

SCREEN

- basket cover center

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

18шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

18шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

18шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

18шт.

16

220712C1

VALVE BLOCK

SECTION - basket cover sheet, rear

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

40шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

40шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

40шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

40шт.

17

220711C1

VALVE BLOCK

SECTION - basket cover center

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

30шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

30шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

30шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

30шт.

18

222709C1

VALVE

SUPPORT - basket cover front panel

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

12шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

12шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

12шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

12шт.

19

222394C1

PLATE

- basket grate pivot

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

3шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

3шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

3шт.

20

222392C1

COVER

- basket opening, right-hand

1шт.

21

222393C1

COVER

- basket opening, left-hand

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

6шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

9шт.

22

672759R1

SIDE ASSY.

SIDE - basket cover door

2шт.

23

1251399C1

SPACER

- basket cover door

2шт.

24

669619R93

SIEVE

GRATE - basket tunnel

9шт.

25

222168C1

BAR

- basket grate, long

2шт.

26

222169C1

BAR - basket grate, short

2шт.

412-620

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

BOLT - carriage, 3/8 NC x 1-1/4 inch, grade 2 (Replaces bolt 18684R1)

16шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

17шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

17шт.

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - carriage, 3/8 NC x 1-3/4 inch (Replaces bolts 18422R1 and 598811r1 )

1шт.

27

222403C1

ANGLE

- top basket support

7шт.

219218

CABLE

NUT - wing, 3/8 inch NF

1шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) (Replaces washer 120388) 3/8"

1шт.

28

222421C1

ANGLE

- handrail support

2шт.

29

200417C1

HANDLE

RAIL - basket grate access

2шт.

30

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 inch

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

31

1251202C1

SUPPORT

- basket opening linkage, left-hand front

1шт.

32

1251203C1

SUPPORT

- basket opening linkage, left-hand rear

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

12шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

12шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

12шт.

33

220886C1

CHANNEL

- basket cover linkage, long

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

34

1251204C1

PLATE

- basket opening linkage

4шт.

35

1251196C1

SUPPORT

- basket opening linkage, right-hand front

1шт.

36

1251197C1

SUPPORT

- basket opening linkage, right-hand rear

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

12шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

12шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

12шт.

37

1251195C1

CHANNEL

- basket linkage

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

38

220884C2

BAR

- basket cover linkage, rear

2шт.

39

1344295C1

SPACER,12.5mm ID x 17.1mm OD x 10.3mm L

- basket linkage (Replaces spacer PO11230)

2шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt 180130) Hex, 3/8"-16 x 2", G5

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

40

149352C1

BUSHING

SPACER - basket cover lever (Replaces spacer 518083R1)

2шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

23шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

41

1251219C1

BAR

- hold-down, basket door

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch (Replaces bolt 18655R1)

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120375)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 120380) 1/4"

2шт.

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (Replaces washer 120386)

2шт.

42

385544R1

SPACER,1/4" Pipe x 3/8"

- pipe, 1/4 x 3/8 inch

2шт.

43

1260433C1

BAR

- basket cover linkage, front

1шт.

44

588322R2

CLIP - cable

2шт.
