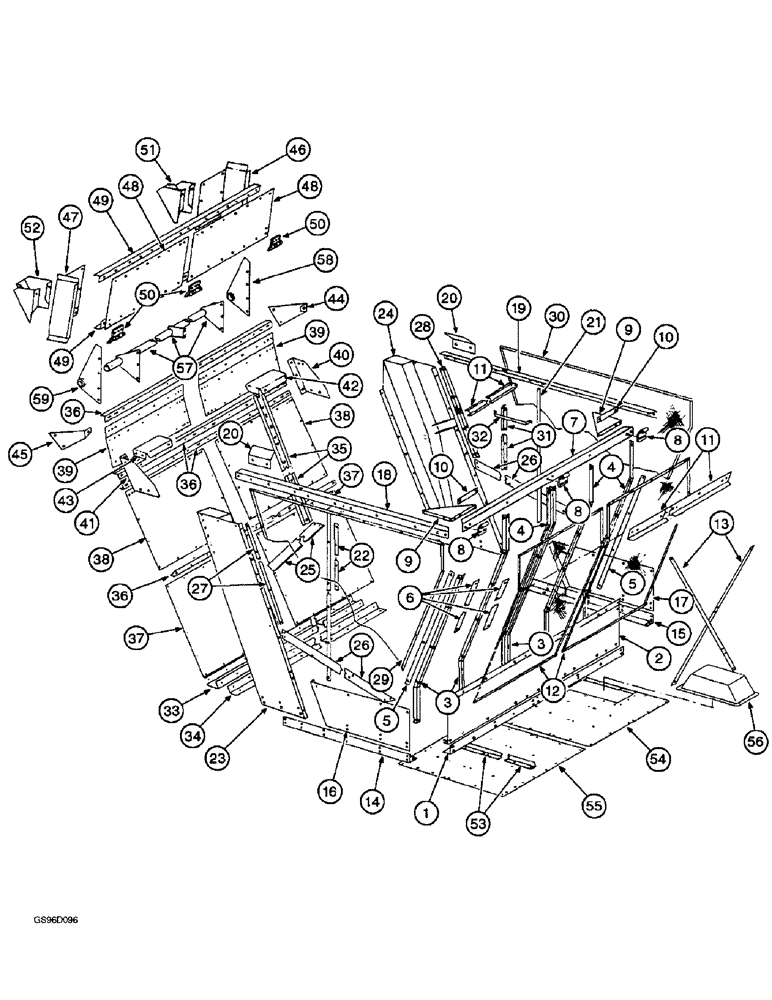

Запчасти Case IH 1400 (9C-02) - BASKET (16) - BASKET

1

214550C1

ANGLE

- basket right-hand side

1шт.

2

214556C1

PLATE

- basket right-hand side

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

16шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

24шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

24шт.

3

214553C1

ANGLE

- basket left-hand corner

3шт.

4

214554C1

ANGLE

- basket right-hand corner

3шт.

5

222745C1

BAR

- side corner

2шт.

6

222743C1

BAR

- side corner

6шт.

7

221153C1

ANGLE

- basket side, top

1шт.

8

672777R2

HINGE

- basket

3шт.

9

672714R1

BRACE

- basket top angle

2шт.

10

673702R1

STRIP

- filler, basket corner brace

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 180124)

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

6шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

6шт.

495-81131

WASHER,13/32" x 7/8" x .035"

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 20803R1)

6шт.

11

214555C1

ANGLE

- basket side

2шт.

12

214735C1

SCREEN

- basket, right-hand

2шт.

13

216034C1

BAR

- basket diagonal

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

10шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

54шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

64шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

64шт.

14

214578C1

ANGLE

- basket end, lower rear

1шт.

15

214579C1

ANGLE

- basket end, lower front

1шт.

16

214584C1

PLATE

- basket end, lower rear

1шт.

17

214585C1

PLATE

- basket end, lower front

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

8шт.

18

221128C1

ANGLE

- basket end, upper rear

1шт.

19

221127C1

ANGLE

- basket end, upper front

1шт.

20

222148C2

SUPPORT

- basket top, guide

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 180124)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

21

214549C1

ANGLE

CHANNEL - basket support end

2шт.

22

222744C1

BAR

- end

2шт.

23

220722C3

ASSEMBLY

SECTION - basket end, rear

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

12шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

12шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

12шт.

24

220721C3

SECTION - basket end, front

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

12шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

16шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

16шт.

25

216166C1

CHANNEL

- basket end support, left-hand

1шт.

25

216167C1

CHANNEL

- basket end support, right-hand

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

12шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

16шт.

26

214655C1

SUPPORT

- diagonal

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

8шт.

27

214586C1

ANGLE

- mesh support, left-hand

1шт.

28

215542C1

ANGLE

- mesh support, right-hand

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

10шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

10шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

10шт.

29

214733C1

SCREEN

- end mesh, rear

1шт.

30

214734C1

SCREEN

- end mesh, front

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

14шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

6шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

20шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

20шт.

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch (Replaces washer 614452R1)

74шт.

31

216048C1

ANGLE

- step support

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 180126)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

495-81143

WASHER,13/32" x 1 1/2" x .120"

(Replaces washer 477589R1) 13/32" x 1 1/2" x .120"

1шт.

32

216049C1

SUPPORT

- step

4шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 180126)

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

8шт.

495-81143

WASHER,13/32" x 1 1/2" x .120"

(Replaces washer 477589R1) 13/32" x 1 1/2" x .120"

8шт.

33

221109C1

SUPPORT

- basket sloping side

1шт.

34

214501C1

SUPPORT

- sloping bottom

1шт.

35

221093C1

CHANNEL

- sloping side, center

1шт.

36

221106C1

ANGLE

- basket sloping side, center

4шт.

37

214502C1

PLATE

- basket sloping side

2шт.

38

221107C1

PLATE

- basket side top

2шт.

39

220788C1

PLATE

- sloping side filler

2шт.

40

220784C1

SUPPORT - sloping side filler, front

1шт.

41

220785C1

SUPPORT - sloping side filler, rear

1шт.

42

220795C1

CHANNEL

SUPPORT - basket filler sheet, front

1шт.

43

220967C1

SUPPORT

- basket filler sheet, rear

1шт.

44

220967C1

SUPPORT

- basket hinge center, front

1шт.

45

220968C1

SUPPORT

- basket hinge center, rear

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

9шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

10шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

10шт.

46

220790C1

SUPPORT

- side sheet door, front

1шт.

47

220791C1

SUPPORT

- side sheet door, rear

1шт.

48

220792C1

PLATE - sloping side door

2шт.

49

220793C1

ANGLE

- basket door hinge

2шт.

50

10810R

HINGE

- basket door

3шт.

51

220821C1

SUPPORT

- basket door opening

1шт.

52

222346C1

SUPPORT

- basket door opening, rear

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

6шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

38шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

38шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolts 17351R1 and 495967R1)

6шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolts 18508R1 and 598809R1)

16шт.

53

214654C1

ANGLE

- bottom support

5шт.

54

217763C1

PLATE

- bottom front

1шт.

55

214649C2

PLATE

- bottom rear

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

60шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

10шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

70шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

70шт.

56

217759C1

SHIELD

- drive

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

16шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

16шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

16шт.

57

220764C2

ROCKSHAFT - basket

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

58

220761C1

SUPPORT

- pivot, outer front

1шт.

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch (Replaces washer 22191R1)

4шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces bolt 180175)

4шт.

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch (Replaces bolt 191163)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

59

220762C1

SUPPORT

- pivot, outer front

1шт.

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch (Replaces washer 22191R1)

4шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces bolt 180175)

4шт.

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch (Replaces bolt 191163)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.
