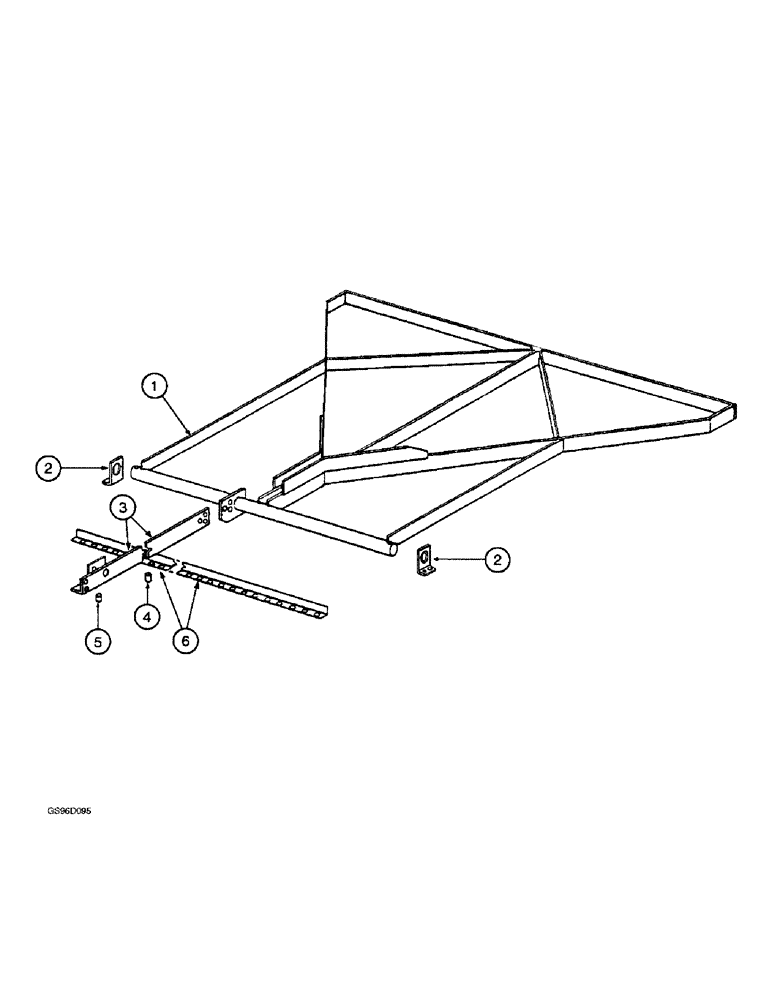

Запчасти Case IH 1400 (9B-08) - BASKET DISTRIBUTOR (15) - HANDLING SYSTEM

1

215357C2

DISTRIBUTOR

- compactor vane

1шт.

2

214602C1

ANGLE

- compactor pivot

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch (Replaces bolt 180147)

3шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces nut 271501)

3шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 120383) 7/16"

3шт.

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), (Replaces pin 137303) 1/4" x 2 1/4"

2шт.

3

221752C2

ANGLE

- compactor

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch (Replaces bolt 180132)

2шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Replaces bolt 180134)

6шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

8шт.

4

K11064

SPACER,3/8" Pipe x 1 1/4"

- compactor angle

6шт.

5

358285R1

SPACER,3/8" Pipe x 1 3/8"

- compactor angle

2шт.

6

214654C1

ANGLE

- basket bottom support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

10шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

10шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

10шт.

514026R1

SPACER - standard, 1 x 1-1/8 inch

1шт.

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch (Replaces washers 21788R1 and 591715R1)

1шт.
