(9A-34) - CROSS AUGER & UNIT DRIVE BELTS, 36, 38 AND 40 INCH, FOUR ROW SOLID

Запчасти Case IH 1400 (9A-34) - CROSS AUGER & UNIT DRIVE BELTS, 36, 38 AND 40 INCH, FOUR ROW SOLID (13) - PICKING SYSTEM

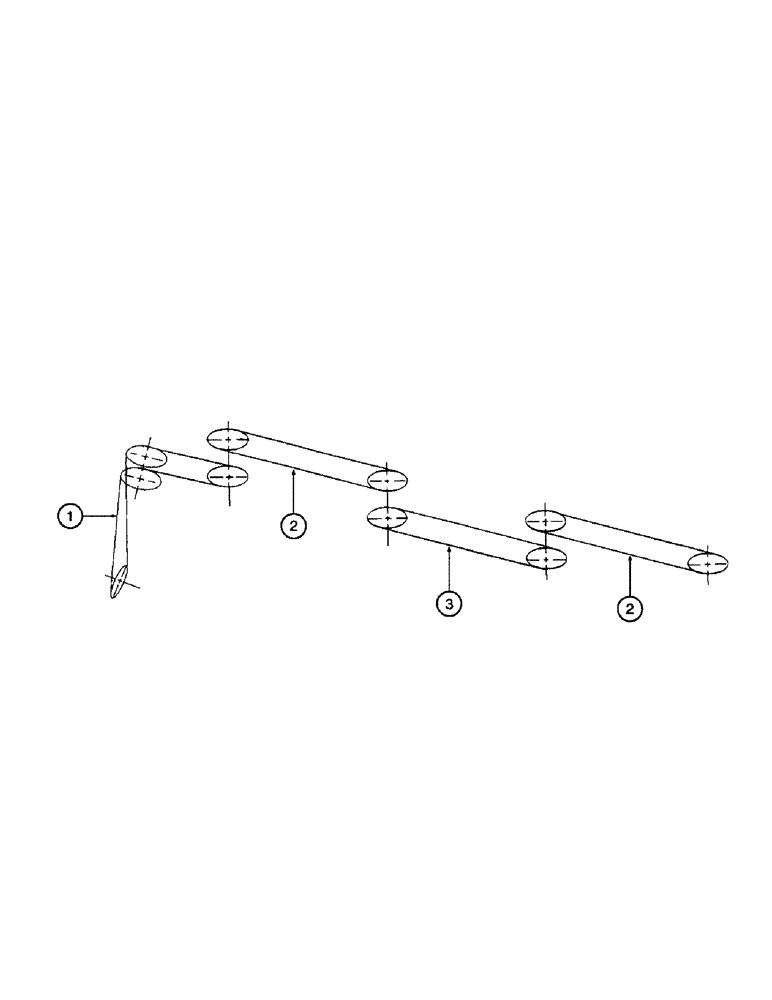

Схема запчастей Case IH 1400 - (9A-34) - CROSS AUGER & UNIT DRIVE BELTS, 36, 38 AND 40 INCH, FOUR ROW SOLID (13) - PICKING SYSTEM
2
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

203170C1

BELT,169.99" L

V-BELT , Cross auger drive 169.99" L

1шт.

2

217701C1

BELT,16.00 mm W x 2323.89 mm L

V-BELT , Outer units 16.00 mm W x 2323.89 mm L

2шт.

3

217698C1

BELT,2514.30 mm L

Center units 2514.30 mm L

1шт.

1

1251214C1

BELT,149.00" L

. Auger 149.00" L

1шт.

2

217699C1

BELT,2780.63 mm L

Outer units 2780.63 mm L

2шт.

3

217698C1

BELT,2514.30 mm L

Center units 2514.30 mm L

1шт.
