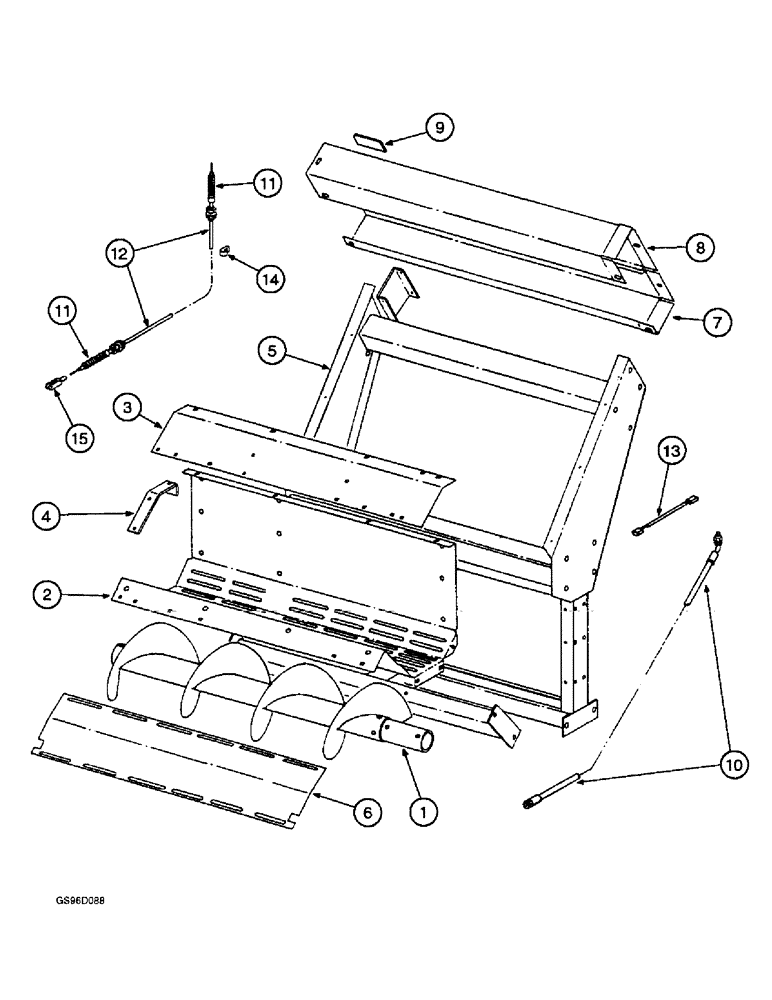

Запчасти Case IH 1400 (9A-32) - CROSS AUGER EXTENSION (13) - PICKING SYSTEM

1

217729C1

AUGER

- extension

1шт.

113-263

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5, Full Thd

(Replaces 189305) Hex, 3/8"-16 x 3 1/2", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

2

1251247C1

HOUSING

SECTION - auger housing extension, also order decal 65982C1

1шт.

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch (Replaces screw 27950R1)

13шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 18508R1 and 598809R1)

8шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

8шт.

3

217847C1

HOUSING

SECTION - auger extension, front

1шт.

4

217863C1

HOLDER

SUPPORT - auger sheet

2шт.

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

(Replaces bolt 191249) Hex, 3/8"-16 x 3 3/4", G5

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 18508R1 and 598809R1)

6шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

8шт.

5

217929C1

SUPPORT

- auger extension

1шт.

219915C1

NUT

- retainer

4шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

(Replaces nut 487374R1) Flg, USR, 1/2"-13

12шт.

6

219820C1

HOUSING

SECTION - auger cover

1шт.

7

217921C1

SUPPORT

SHIELD - lower extension

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

8

1251248C1

SHIELD

- upper extension, also order decal 175311C1

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

(Replaces bolt 174856C1) Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

219915C1

NUT

- retainer

2шт.

9

175311C1

REFLECTOR

- red stick-on

1шт.

10

222345C1

HOSE

- sensor valve to hydraulic cylinder

1шт.

11

204053C1

BOOT

- cable end

2шт.

12

1329427C1

CABLE

- height control (Replaces cable 222209C91)

1шт.

13

222482C1

CABLE

- extension

1шт.

386170C1

CABLE TIE,.30" x 27 1/2"

TIE - cable

10шт.

14

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Height control cable (Replaces clamp 299404C1) 3/8", Insul, 3/8" Bolt

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

1шт.

15

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10 NF (Replaces clevis 186956)

1шт.

225-14210

NUT,#10-32

(Replaces nut 120614) #10-32

3шт.

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened (Replaces pin 138082) 3/16" x .580"

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin 112726) 1/16" x 1/2"

1шт.
