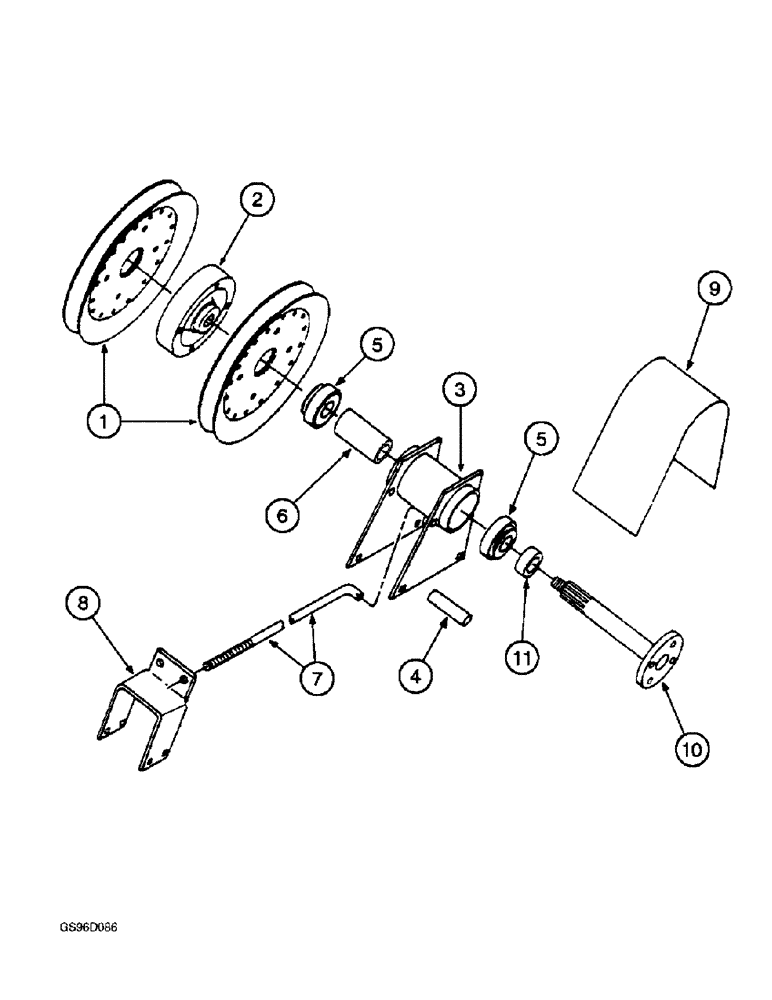

Запчасти Case IH 1400 (9A-30) - CROSS AUGER EXTENSION DRIVE (13) - PICKING SYSTEM

1

217688C1

PULLEY

- unit drive

2шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 180128)

4шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

4шт.

2

222295C1

HUB

- pulley

1шт.

3

217690C1

SUPPORT

- bearing

1шт.

4

939849R1

SPACER - tube, 5/8 x 2-15/16 inch

2шт.

5

586649R92

BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W

- countershaft

2шт.

6

217693C1

SPACER

- bearing

1шт.

7

217711C1

ROD

- adjusting

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

2шт.

432-1216

COTTER PIN,3/16" x 1"

(Replaces pin 103407) 3/16" x 1"

1шт.

8

220567C1

SUPPORT

- anchor

1шт.

111-350

CARRIAGE BOLT,Short NK, 3/8"-16 x 4", G2

BOLT - carriage, 3/8 NC x 4 inch (Replaces bolt 18688R1)

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

2шт.

9

222355C1

SHIELD

- unit drive knuckle

1шт.

111-350

CARRIAGE BOLT,Short NK, 3/8"-16 x 4", G2

BOLT - carriage, 3/8 NC x 4 inch (Replaces bolt 18688R1)

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

2шт.

10

222294C2

SHAFT

- flange (Replaces shaft 222294C1)

1шт.

22047R1

LOCK NUT,5/8"-11

NUT - lock, 5/8 inch NC

1шт.

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 15/64 inch (Replaces washer 21905R1)

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 180079)

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

4шт.

11

219829C1

SPACER

- flange shaft

1шт.
