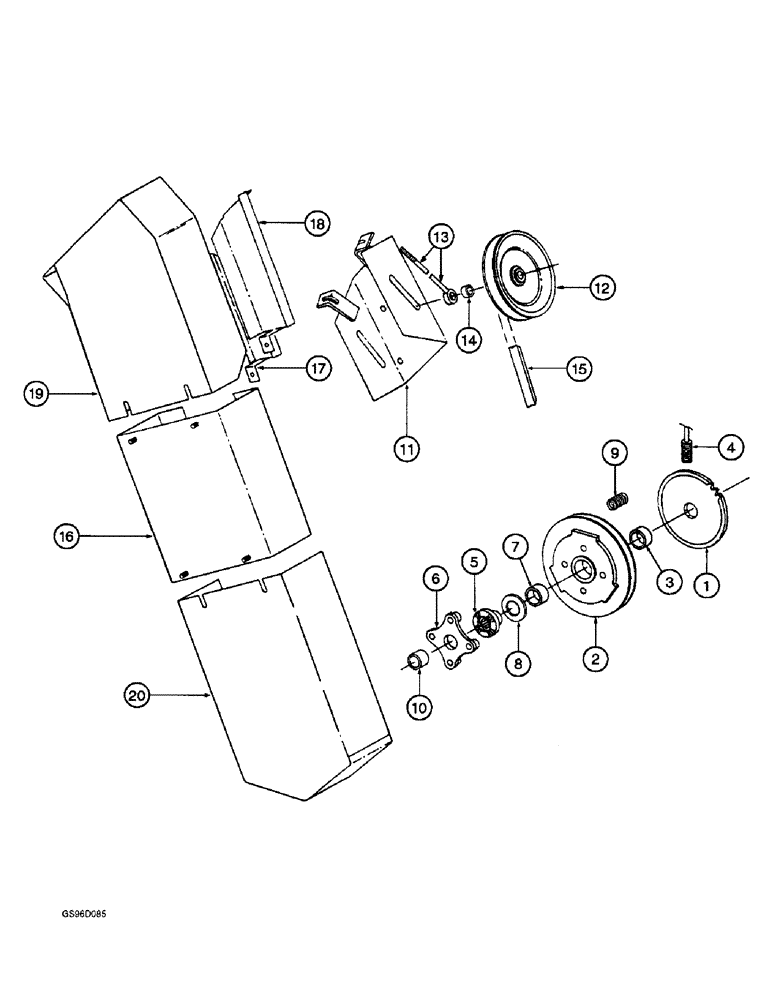

Запчасти Case IH 1400 (9A-26) - CROSS AUGER DRIVE (13) - PICKING SYSTEM

1

222418C1

SPROCKET ASSY.

SPROCKET - sensor

1шт.

2

217771C1

PULLEY

- kicker drive

1шт.

3

211870C1

SPACER

- auger

1шт.

495-81078

WASHER,1 1/32" x 2" x .179"

- flat, 1-1/32 x 2 x 11/64 inch (Replaces washer 21162R1)

1шт.

4

187855C1

ELECTRICAL GAUGE

TRANSDUCER - reluctance

1шт.

145507

NUT,Stamped, 7/8"-14

- hex, 7/8 inch NF

2шт.

5

1251171C1

HUB

- clutch

1шт.

6

203510C1

RATCHET

- clutch

1шт.

7

219579C1

BUSHING

- clutch

1шт.

8

203515C1

WASHER

BEARING - clutch thrust

1шт.

9

203518C1

SPRING

- clutch

4шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch (Replaces bolt 271730)

4шт.

22047R1

LOCK NUT,5/8"-11

NUT - lock, 5/8 inch NC

4шт.

10

SA10098

ROLLER

SPACER - clutch

1шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT - lock, 3/4 inch NF

1шт.

11

222291C1

SUPPORT

- idler

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces bolt 180175)

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

12

824960C91

PULLEY

- idler (Replaces pulley 574097R91)

2шт.

13

222216C1

BOLT

- idler adjustment

2шт.

14

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

- idler pulley

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(Replaces bolt 271727) Hex, 5/8"-11 x 3", G5

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

(Replaces washer 131016) 21/32" x 1 5/16" x .150", HDN

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") (Replaces washer 120396) 1/2", SAE

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

15

1251214C1

BELT,149.00" L

Auger 149.00" L

1шт.

16

1251236C1

SUPPORT

- drive shield, also order decal 56630C1

1шт.

220854

BOLT - hex, 5/16 NC x 5/8 inch

6шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

4шт.

17

222377C1

SHIELD

- mule drive lower

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

1шт.

18

222376C1

SHIELD

- mule drive upper

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

1шт.

19

222370C1

SHIELD

- upper cross auger drive

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC (Replaces nut 142745)

2шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

2шт.

493-81008

LOCK WASHER,Int Tooth, 5/16"

(Replaces washer 23060R1) Int Tooth, 5/16"

2шт.

20

222373C1

SHIELD

- lower cross auger drive

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC (Replaces nut 142745)

3шт.

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washers 120393 and 27309R1)

3шт.

493-81008

LOCK WASHER,Int Tooth, 5/16"

(Replaces washer 23060R1) Int Tooth, 5/16"

3шт.
