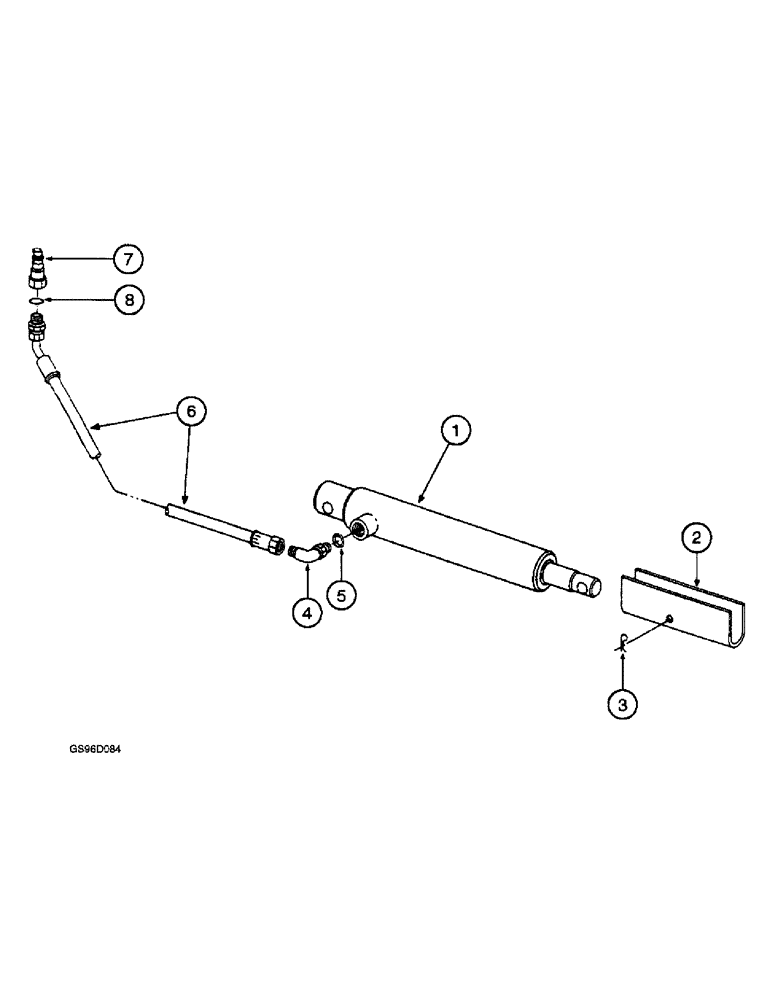

Запчасти Case IH 1400 (9A-24) - CROSS AUGER CYLINDER AND CONNECTIONS (13) - PICKING SYSTEM

1

142417C93

CYLINDER ASSY.

CYLINDER ASSEMBLY - unit lift, two used with two row, four used with four row, parts list page 8-5

1шт.

24478R1

HEADED PIN,5/8" x 3 1/4"

PIN - headed, 5/8 x 3-1/4 inch, two used with two row, four used with four row

1шт.

432-1216

COTTER PIN,3/16" x 1"

Two used with two row, four used with four row (Replaces pin 103407) 3/16" x 1"

1шт.

2

219975C1

HOLDER

SUPPORT - cylinder lock, two used with two row, four used with four row

1шт.

439-5544

HEADED PIN,5/16" x 2.609"

PIN - headed, 5/16 x 2-3/4 inch, two used with two row, four used with four row (Replaces pin 23821R1)

1шт.

3

586591R1

COTTER PIN

PIN - quick attach, 1/8 inch, two used with two row, four used with four row

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch, 2 used with two row, 4 used with four row (Replaces bolts 12872R1 and 598803R1)

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Two used with two row, four used with four row (Replaces nut 938017R1)

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adjustable O-ring boss, two used with two row, four used with four row (Replaces elbow 9410977)

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 2 used with two row, 4 used with four row, Replaces O-ring 570828R1

1шт.

6

222342C1

HOSE

- inner unit, used with four row only

1шт.

6

222343C1

HOSE

- outer unit

2шт.

6

222344C1

HOSE

- inner unit, right-hand, used with four row only

1шт.

7

1272399C2

QUICK MALE COUPLING

COUPLER, 7/8 NF, Self-Sealing, Male, two used with two row, four used with four row (Replaces coupler 395149R1)

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, two used with two row, four used with four row (Replaces O-ring 364885R1)

1шт.

386170C1

CABLE TIE,.30" x 27 1/2"

TIE - cable

5шт.
