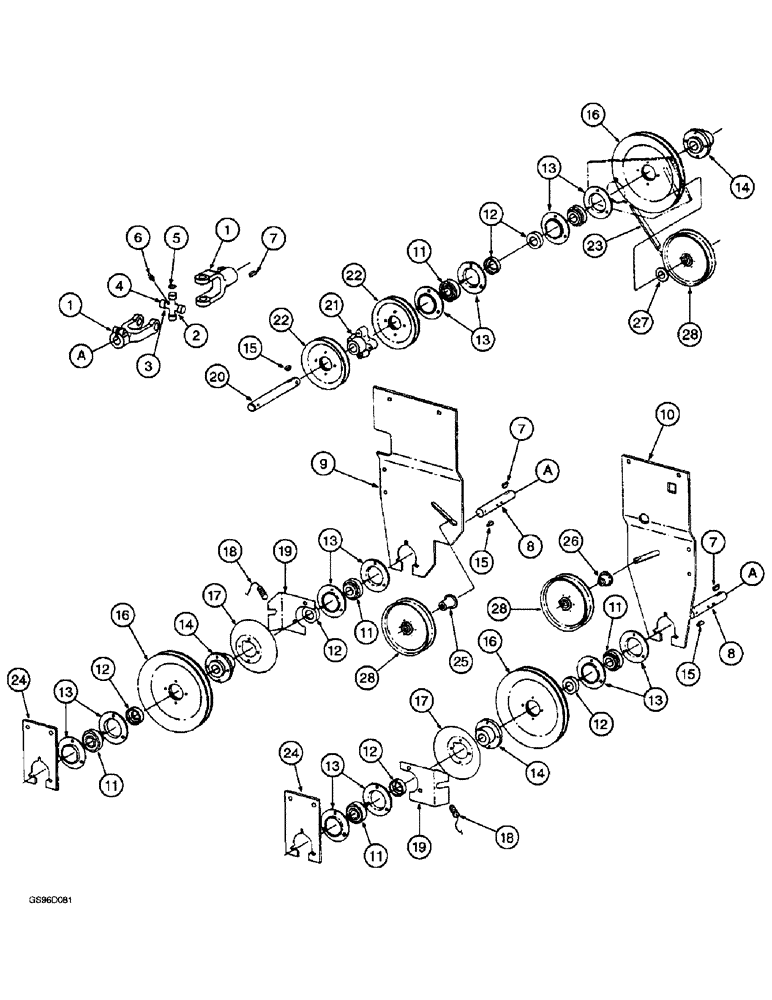

Запчасти Case IH 1400 (9A-18) - BOLL AUGER DRIVE (13) - PICKING SYSTEM

1

202350C1

YOKE

- drive unit

4шт.

2

NSS

NOT SOLD SEPARAT

CROSS - bearing, order kit 150635R92

1шт.

3

202372C1

SEAL

- lip

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - order kit 150635R92

1шт.

5

202373C1

RING

- snap

1шт.

6

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch (Replaces fitting 117175)

1шт.

7

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY - Woodruff, No. 11 (Replaces key 120502)

4шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

(Replaces bolt 180183) Hex, 1/2"-13 x 2 1/4", G5

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

8

222225C1

SHAFT

- pulley

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2" (Replaces pin 103420)

2шт.

9

222226C1

SUPPORT

- bearing, left-hand

1шт.

10

222227C1

SUPPORT

- bearing, right-hand

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

11

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- drive

6шт.

12

557115R11

COLLAR

COLLAR - bearing

6шт.

13

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing, no longer used, order flange H747188 below

12шт.

13

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing (Replaces flange 565631R1)

12шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 550796R1) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

18шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

18шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

18шт.

14

202297C2

HUB

- pulley

3шт.

15

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

(Replaces key 124554) #B, 5/16" x 1", HT

3шт.

38-32432

PIN,3/8" x 2", Coiled

(replaces pin 577247R1) 3/8" x 2", Coiled

3шт.

16

662768R11

PULLEY

- auger drive

3шт.

17

222459C1

ROTOR

SPROCKET - boll auger pickup

2шт.

18

187855C1

ELECTRICAL GAUGE

TRANSDUCER - reluctance

2шт.

19

222490C1

SUPPORT

BRACKET - boll auger sensor

1шт.

145507

NUT,Stamped, 7/8"-14

- hex, 7/8 inch NF

4шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Replaces bolt 180081)

12шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

12шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

12шт.

20

222230C1

SHAFT

- upper pulley

1шт.

21

662662R1

HUB - upper pulley

1шт.

38-32432

PIN,3/8" x 2", Coiled

(replaces pin 577247R1) 3/8" x 2", Coiled

1шт.

22

222420C1

PULLEY

- upper drive

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(Replaces bolt 180087) Hex, 5/16"-18 x 2", G5

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

495-81289

WASHER,1.25" ID x 2.75" OD x 0.16" Thk

- flat, 1-1/4 x 2-3/4 x 5/32 inch (Replaces washer Q3482)

7шт.

23

222203C1

BELT,16.00 mm W x 1876.20 mm L

V-BELT , Auger drive 16.00 mm W x 1876.20 mm L

2шт.

24

222234C1

SUPPORT

- bearing

2шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

25

222239C1

SPACER

- pulley, short

1шт.

26

222238C1

SPACER

- pulley, long

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(Replaces bolt 271733) Hex, 5/8"-11 x 4 1/2", G5

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

(Replaces washer 131016) 21/32" x 1 5/16" x .150", HDN

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch (Replaces bolt 271728)

1шт.

27

222237C1

SPACER

- pulley, upper

1шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch (Replaces bolt 271725)

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

(Replaces washer 131016) 21/32" x 1 5/16" x .150", HDN

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

28

610407R91

BEARING

IDLER - belt

3шт.

150635R92

SPIDER

KIT - cross (Replaces kits 202347C91 and 586742C91)

2шт.
