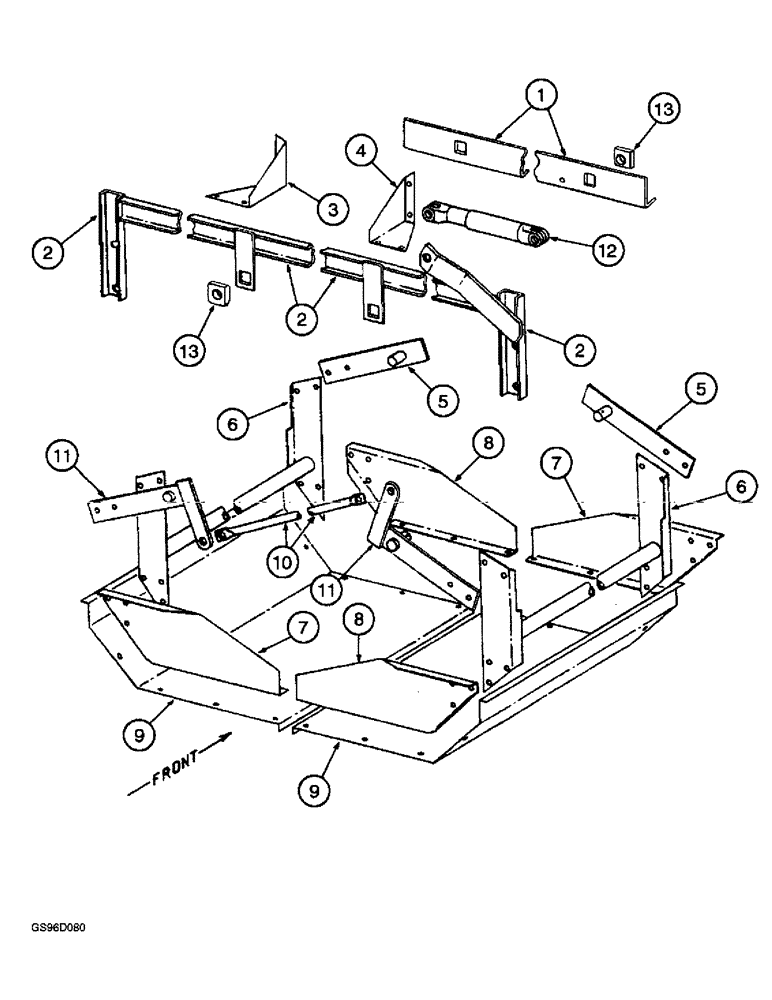

Запчасти Case IH 1400 (9A-16) - BOLL BOX AND CYLINDER (13) - PICKING SYSTEM

1

222243C1

SUPPORT

ANGLE - bearing front

1шт.

2

222231C1

SUPPORT - bearing

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces bolt 180175)

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

3

222228C1

SUPPORT

ANGLE - brace, left-hand

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 180079)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

4

222229C1

SUPPORT

- bearing

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 180079)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

4шт.

5

222244C1

ARM

- front

2шт.

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch (Replaces washer 131018)

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), (Replaces pin 217973) 1/4" x 1 1/4"

2шт.

6

222350C1

PIPE

- boll box

2шт.

113-202

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

8шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

8шт.

7

222250C1

SUPPORT

PLATE - box end

2шт.

8

222251C1

SUPPORT

PLATE - box end

2шт.

9

222252C1

SUPPORT

SHEET - bottom

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

32шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

32шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

32шт.

10

222253C1

ROD

PIPE - link

1шт.

49183H

PIN - clevis, 5/8 x 61/64 inch

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

(Replaces washer 131016) 21/32" x 1 5/16" x .150", HDN

1шт.

432-816

COTTER PIN,1/8" x 1"

(Replaces pin 137185) 1/8" x 1"

1шт.

11

222246C1

ARM

- rear

2шт.

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch (Replaces washer 131018)

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), (Replaces pin 217973) 1/4" x 1 1/4"

2шт.

12

381818R94

CYLINDER ASSY.

CYLINDER ASSEMBLY - boll box, parts list page 8-25

1шт.

427-10161

CLEVIS PIN,15.88mm OD x 40.89mm L

PIN - clevis, 5/16 x 1-39/64 inch (Replaces pin 138087)

2шт.

432-816

COTTER PIN,1/8" x 1"

(Replaces pin 137185) 1/8" x 1"

2шт.

13

668999R1

BUSHING

BEARING - boll box

4шт.
