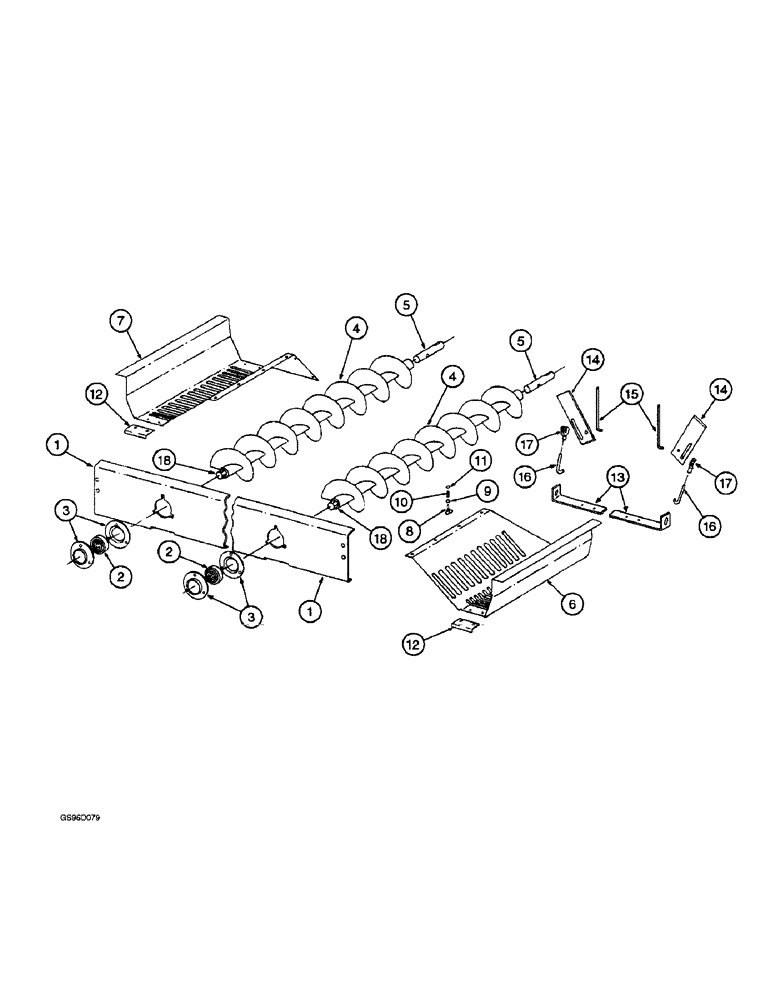

Запчасти Case IH 1400 (9A-14) - BOLL AUGER AND TROUGH (13) - PICKING SYSTEM

1

222223C1

SUPPORT

CHANNEL - bearing

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

4шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

2

211587C91

BALL BEARING,1.586" ID x 62 mm OD x 24 mm

BEARING - front auger block

2шт.

3

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing, if used (Replaces flange 565631R1)

4шт.

3

662649R1

RETAINER

FLANGE - bearing, if used

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

6шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

6шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

6шт.

4

222222C1

AUGER

- boll

2шт.

5

222224C1

SHAFT

- auger

2шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt 180130) Hex, 3/8"-16 x 2", G5

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

6шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

6

222240C1

TROUGH

- auger, left-hand

1шт.

7

222241C1

TROUGH

- auger, right-hand

1шт.

8

195974C1

FASTENER

- wing-head

2шт.

9

190447H1

WASHER

- wear

2шт.

10

196548C1

SPRING

- wing-head fastener

2шт.

11

929734C1

RETAINER

- wing-head fastener

2шт.

12

222242C1

SUPPORT

ANGLE - support

2шт.

13

222407C1

SUPPORT

- boll auger rear

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 120376)

14шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 120214) 5/16"

14шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

10шт.

14

222406C1

PLATE

- over center clip

2шт.

15

222404C1

ROD

- upper clip

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (Replaces pin 177923) 1/8" x 3/4"

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (Replaces washer 120394) 3/8", SAE

2шт.

16

222405C1

ROD

- lower clip hook

2шт.

17

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF (Replaces clevis 104038)

2шт.

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened (Replaces pin 138084) 3/8" x 1 1/16"

2шт.

432-616

COTTER PIN,3/32" x 1"

(Replaces pin 121222) 3/32" x 1"

2шт.

18

217413C1

BAR

SHAFT - auger front

2шт.
