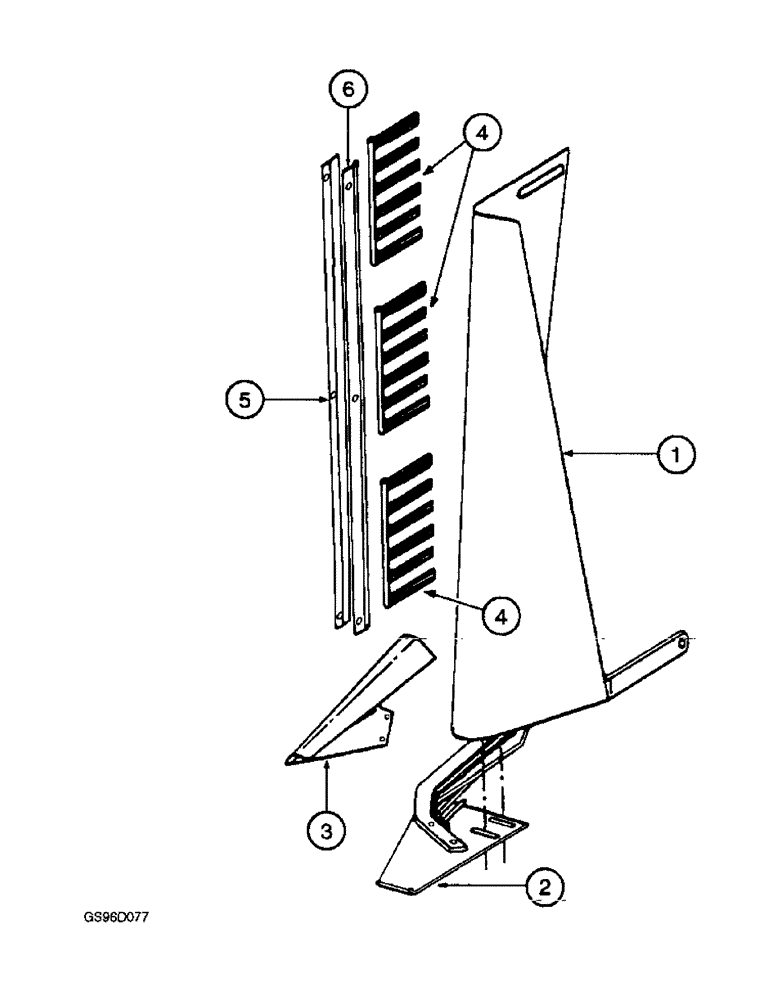

Запчасти Case IH 1400 (9A-10) - PLANT LIFTERS, BRUSH ROLL UNIT (13) - PICKING SYSTEM

1

219568C2

GUIDE

- left-hand

1шт.

1

219569C2

GUIDE

- right-hand

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces bolt 180175)

4шт.

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC (Replaces nut 22816R1)

4шт.

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch (Replaces bolt 180171)

2шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

(Replaces nut 487374R1) Flg, USR, 1/2"-13

2шт.

2

222185C3

TAPPET

LIFTER - plant, left-hand

1шт.

2

222186C3

TAPPET

LIFTER - plant, right-hand

1шт.

412-820

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/4", Gr 2

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 2 (Replaces bolt 17140R1)

4шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

(Replaces nut 487374R1) Flg, USR, 1/2"-13

4шт.

3

669373R2

SHEET

- plant lifter extension, left-hand

1шт.

3

669374R2

SHEET

- plant lifter extension, right-hand

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch (Replaces bolts 12872R1 and 598803R1)

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

4шт.

4

219628C1

BRUSH, COMMUTATOR

BRUSH - unit cotton retainer

6шт.

5

219717C2

SUPPORT

- short

2шт.

6

219718C2

SUPPORT

- long

2шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolts 16897R1 and 598802R1)

6шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

6шт.
