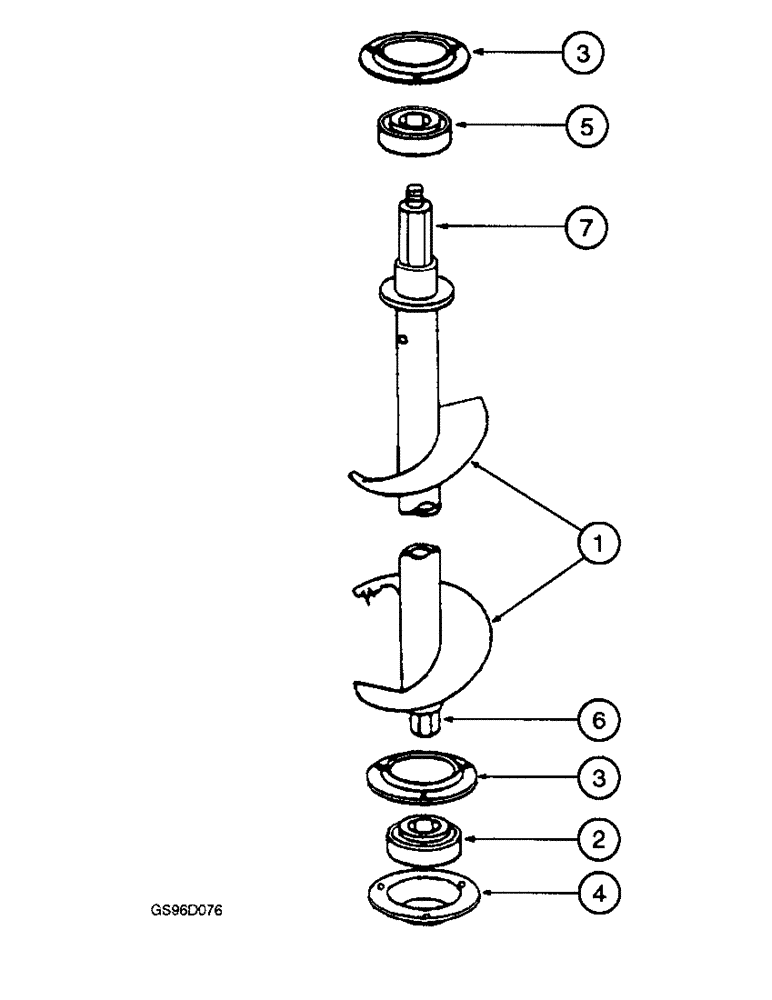

Запчасти Case IH 1400 (9A-08) - SIDE AUGER, BRUSH ROLL UNIT (13) - PICKING SYSTEM

1

217407C1

AUGER

- side, left-hand

1шт.

1

217408C1

AUGER

- side, right-hand

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt 180130) Hex, 3/8"-16 x 2", G5

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 120377) 3/8"-16, G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

22047R1

LOCK NUT,5/8"-11

NUT - lock, 5/8 inch NC

2шт.

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 15/64 inch (Replaces washer 21905R1)

2шт.

2

1994738C1

BEARING ASSY,1.001" ID x 2.44" OD x 0.63"

BEARING - front (Replaces bearing 212328C91)

2шт.

3

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - rear bearing, if used (Replaces flange 565631R1)

4шт.

3

662649R1

RETAINER

FLANGE - rear bearing, if used

4шт.

4

219547C1

FLANGE

COVER - bearing housing

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

6шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

6шт.

5

211587C91

BALL BEARING,1.586" ID x 62 mm OD x 24 mm

BEARING - side auger, rear

2шт.

6

217413C1

BAR

- front

2шт.

7

217412C1

BAR

- rear

2шт.
