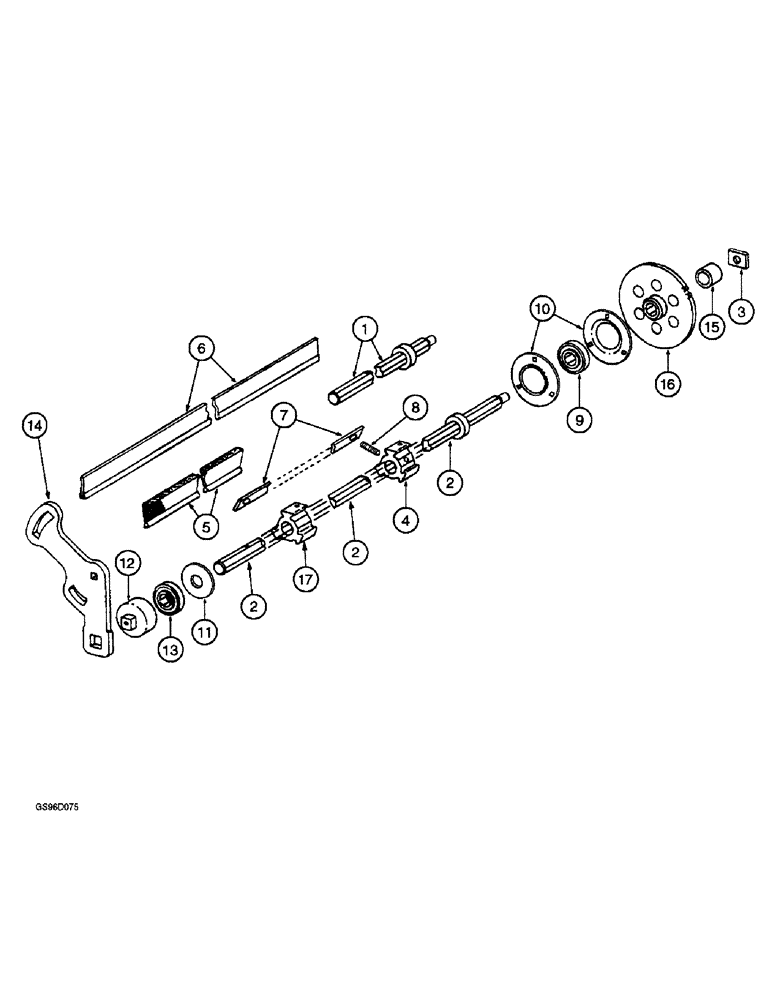

Запчасти Case IH 1400 (9A-06) - BRUSH ROLLS (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
1
217416C1
BAR
- brush roll, short
1шт.
22047R1
LOCK NUT,5/8"-11
NUT - lock, 5/8 inch NC
1шт.
495-81028
WASHER,21/32" x 1 1/2" x .240"
- flat, 21/32 x 1-3/4 x 15/64 inch (Replaces washer 21905R1)
1шт.
2
217418C1
BAR
- brush roll, long
1шт.
22047R1
LOCK NUT,5/8"-11
NUT - lock, 5/8 inch NC
1шт.
3
10176RA
WASHER
PLATE - retainer, used with long bar 217418C1 only
1шт.
4
1251406C1
SUPPORT
- flap and brush
10шт.
38-32032
PIN,7.92mm OD x 50.8mm L
(Replaces pin 576482R1) 5/16" x 2", Coiled
4шт.
5
217420C1
BRUSH
- stripper
12шт.
6
217421C1
FLAP
- stripper
6шт.
6
1260448C1
INSULATOR
FLAP - stripper, heavy duty
6шт.
7
222454C1
BAR
- retainer
6шт.
8
1260565C1
STUD
- 3/8 x 1-37/64 inch
42шт.
425-106
NUT,3/8"-16, Cl 5
(Replaces nut 120377) 3/8"-16, G5
42шт.
492-11038
LOCK WASHER,3/8"
(Replaces washer 120382) 3/8"
42шт.
9
211587C91
BALL BEARING,1.586" ID x 62 mm OD x 24 mm
BEARING - brush roll, rear
2шт.
10
H747188
FLANGED BEARING,112.73 mm OD x 8.74 mm
FLANGE - bearing retainer, if used (Replaces flange 565631R1)
4шт.
10
662649R1
RETAINER
FLANGE - bearing retainer, if used
4шт.
11
203387C1
WASHER
- lower
2шт.
12
203388C1
HOUSING
- brush roll, front
2шт.
217-430
PLUG,Hex Soc, 1/8" - 27 NPTF
- hex socket, 1/8 inch PT (Replaces plug 444687)
2шт.
13
203389C91
BALL BEARING,25.43mm Hex x 62mm OD x 24mm W
BEARING - brush roll, front
2шт.
14
203390C1
BRACE
- roll pivot, left-hand
1шт.
14
203391C1
BRACE
- roll pivot, right-hand
1шт.
412-1024
CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2
BOLT - carriage, 5/8 NC x 1-1/2 inch, grade 2 (Replaces bolt 18573R1)
6шт.
22047R1
LOCK NUT,5/8"-11
NUT - lock, 5/8 inch NC
6шт.
396-21066
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
(Replaces washer 131016) 21/32" x 1 5/16" x .150", HDN
6шт.
15
219552C1
SPACER
- shaft, used with long bar 217418C1 only
1шт.
16
REF
INSTRUCTION
GEAR - side auger drive
1шт.
17
217415C1
SUPPORT
- flap and brush
4шт.
Выбрано товаров: 30
