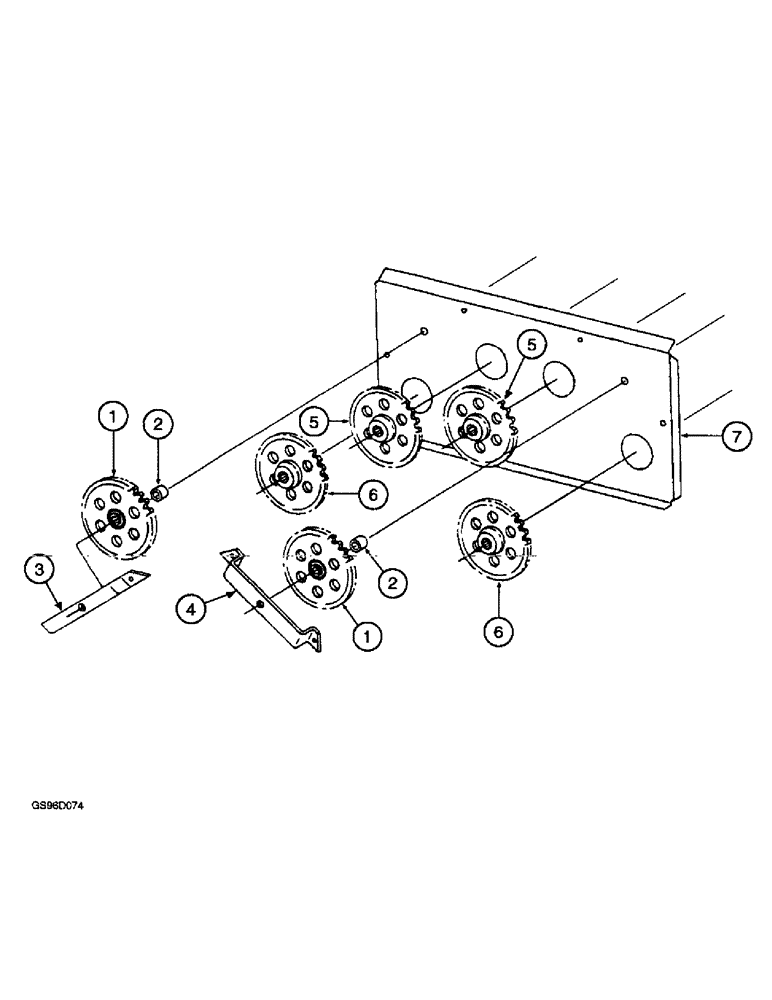

Запчасти Case IH 1400 (9A-04) - ROLL AND AUGER DRIVE GEAR, BRUSH ROLL UNIT (13) - PICKING SYSTEM

1

203519C2

PINION

GEAR - idler

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

(Replaces bolt 271729) Hex, 5/8"-11 x 3 1/2", G5

2шт.

22047R1

LOCK NUT,5/8"-11

NUT - lock, 5/8 inch NC

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch (Replaces washer 464623R1)

4шт.

2

259062R1

SPACER

- idler

2шт.

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 21/32 x 1-1/4 x 3/64 inch (Replaces washer 608701R1)

12шт.

3

217426C1

SUPPORT

- idler, left-hand

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

2шт.

4

217427C1

SUPPORT

- idler, right-hand

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

2шт.

5

217423C1

PINION

GEAR - brush roll

2шт.

6

217425C1

PINION

GEAR - side auger

2шт.

7

REF

INSTRUCTION

SUPPORT - rear bearing, see page 9A-3

1шт.
