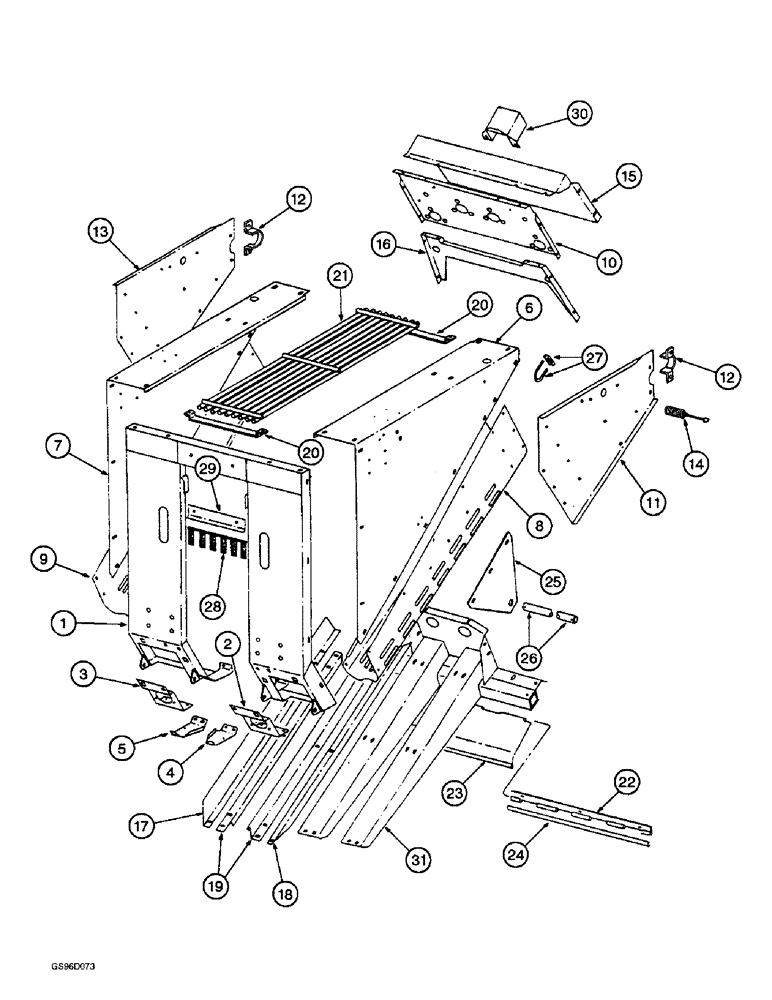

Запчасти Case IH 1400 (9A-02) - HEADER FRAME, BRUSH ROLL UNIT (13) - PICKING SYSTEM

1

217374C1

SUPPORT

- front

1шт.

2

203322C1

SHEET

- bearing support, left-hand

1шт.

3

203323C1

SHEET

- bearing support, right-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

6шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

6шт.

4

203324C1

SHEET

- skid shoe, left-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

5

203325C1

SHEET

- skid shoe, right-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

6

1251240C2

VALVE BLOCK

SECTION - unit side, left-hand, also order decal 176977C1 (Replaces section 1251240C1)

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

9шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

9шт.

7

217383C2

VALVE BLOCK

SECTION - unit side, right-hand (Replaces section 217383C1)

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

9шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

9шт.

8

1999044C1

HOUSING

- auger, left-hand, also order decal 65982C1 (Replaces housing 1251241C1)

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

9

1999045C1

HOUSING

- auger, right-hand, also order decal 65982C1 (Replaces housing 1251242C1)

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

10

1251520C1

SUPPORT

- rear bearing

1шт.

10

217391C1

SUPPORT - rear bearing, used with machines built prior to 1981, no longer available

1шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

16шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

4шт.

11

1251515C1

SUPPORT

- pivot plate, left-hand

1шт.

11

217955C1

SUPPORT - pivot plate, left-hand, used with machines built, Serial Range: prior-1981

1шт.

12

220730C2

CLEVIS

BEARING - clevis (Replaces bearing 220730C1)

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

10шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

10шт.

13

1999043C1

PLATE

- right-hand (Replaces plate 1251522C1)

1шт.

13

217956C1

SUPPORT

PLATE - right-hand, used with machines built, Serial Range: prior-1981

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

10шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

10шт.

14

187855C1

ELECTRICAL GAUGE

TRANSDUCER - reluctance

1шт.

178023

FILTER SCREEN,29/32"

- button

1шт.

145507

NUT,Stamped, 7/8"-14

- hex, 7/8 inch NF

2шт.

15

1251178C1

SHIELD

- gear

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

4шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

6шт.

16

217386C1

SUPPORT

- top baffle

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

6шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

6шт.

17

217389C1

SUPPORT

- retainer outer, right-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

18

217388C1

SUPPORT

- retainer outer, left-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

19

217390C1

SUPPORT

- retainer inner

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

6шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

6шт.

20

217887C1

STRAP

- grate support

2шт.

21

1999048C1

GRATE ASSY.

GRATE - unit (Replaces grate 217397C1)

1шт.

22

1251514C2

HINGE

- auger housing (Replaces hinge 1251514C1)

1шт.

22

203357C1

HINGE

- auger housing, used with machines built, Serial Range: prior-1981

1шт.

23

1999046C1

SHIELD

SECTION - auger housing flap (Replaces section 1251525C1)

1шт.

23

219572C1

SHIELD

SECTION - auger housing flap, used with machines built, Serial Range: prior-1981

1шт.

24

1251513C1

ROD

- auger housing hinge

1шт.

24

203369C1

ROD

- auger housing hinge, used with machines built, Serial Range: prior-1981

1шт.

25

217893C1

SUPPORT

- cylinder pin outer

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

26

217895C1

PIN

- hydraulic cylinder

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2" (Replaces pin 20430R1)

2шт.

27

163071H1

CLAMP

- 2 inch

2шт.

28

219628C1

BRUSH, COMMUTATOR

BRUSH - unit cotton retainer

1шт.

29

1251208C1

BAR

PLATE - brush retainer

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

2шт.

30

1251243C1

SHIELD

- shaft, also order decal 56630C1

1шт.

31

1251527C1

SUPPORT

- frame

1шт.

31

222011C1

SUPPORT - frame, used with machines built prior to 1981, no longer available

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

14шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

17шт.
