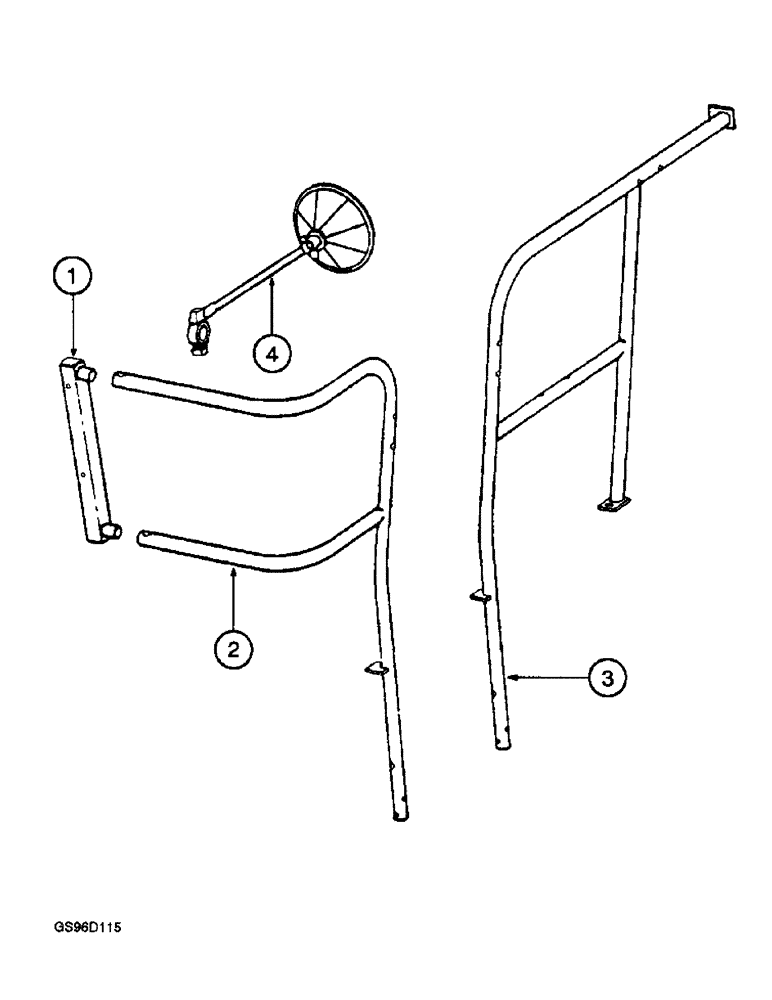

Запчасти Case IH 1400 (9E-12) - HANDRAILS (12) - CHASSIS

1

216206C1

ANGLE

- handrail

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

2шт.

2

222143C1

RAIL

HANDRAIL - front

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt 180130) Hex, 3/8"-16 x 2", G5

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

3

222141C1

RAIL

HANDRAIL - rear

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

4

196661C91

MIRROR

- handrail

1шт.
