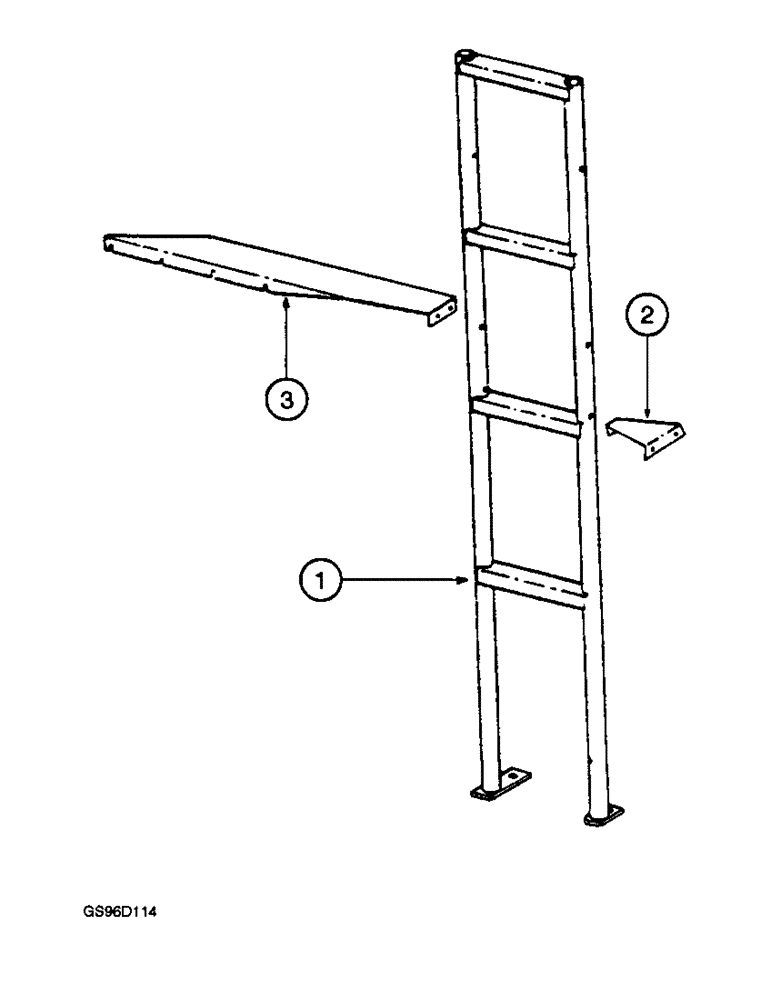

Запчасти Case IH 1400 (9E-10) - BASKET LADDER (12) - CHASSIS

1

21941C1

LADDER - basket

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

2шт.

2

220660C1

SUPPORT

- basket ladder, short

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt 180130) Hex, 3/8"-16 x 2", G5

3шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

3шт.

3

220659C1

SUPPORT

- basket ladder, long

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Replaces bolt 180130) Hex, 3/8"-16 x 2", G5

1шт.

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

1шт.
