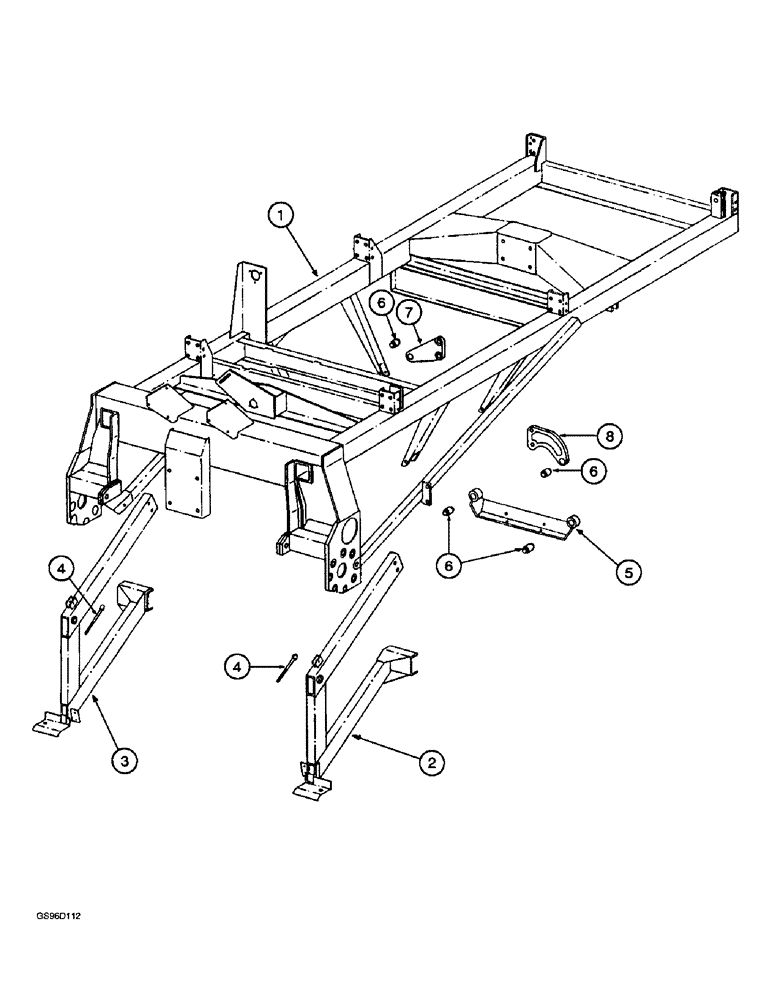

Запчасти Case IH 1400 (9E-06) - FRAME, DRAWBAR AND HITCH (12) - CHASSIS

1

1251227C1

FRAME - main, also order decals 210600C1 and 204166C1

1шт.

2

222210C1

SUPPORT

- frame, left-hand

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch (Replaces bolt 271728)

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch (Replaces bolt 433163)

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

3

222211C1

SUPPORT

- frame, right-hand

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch (Replaces bolt 271728)

2шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch (Replaces bolt 433163)

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

4

222216C1

BOLT

- hitch adjustment

2шт.

21808R1

HEADED PIN,5/8" x 1 1/2"

PIN - headed, 5/8 x 1-1/2 inch

2шт.

432-1216

COTTER PIN,3/16" x 1"

(Replaces pin 103407) 3/16" x 1"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

2шт.

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (Replaces washer 120390)

2шт.

5

214545C1

BRACKET

- engine front support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

2шт.

413-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/2 NC x 2-3/4 inch (Replaces bolt 180188)

6шт.

329-108

NUT,1/2"-13, G8

(Replaces nut 25526R1) 1/2"-13, G8

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

6шт.

6

672870R1

BUSHING

- engine support, rubber

4шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(Replaces bolt 271727) Hex, 5/8"-11 x 3", G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

4шт.

7

672872R1

SUPPORT

BRACKET - engine support, right-hand rear

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch (Replaces bolt 271724)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

8

672871R1

SUPPORT

BRACKET - engine support, left-hand rear

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch (Replaces bolt 271724)

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.
