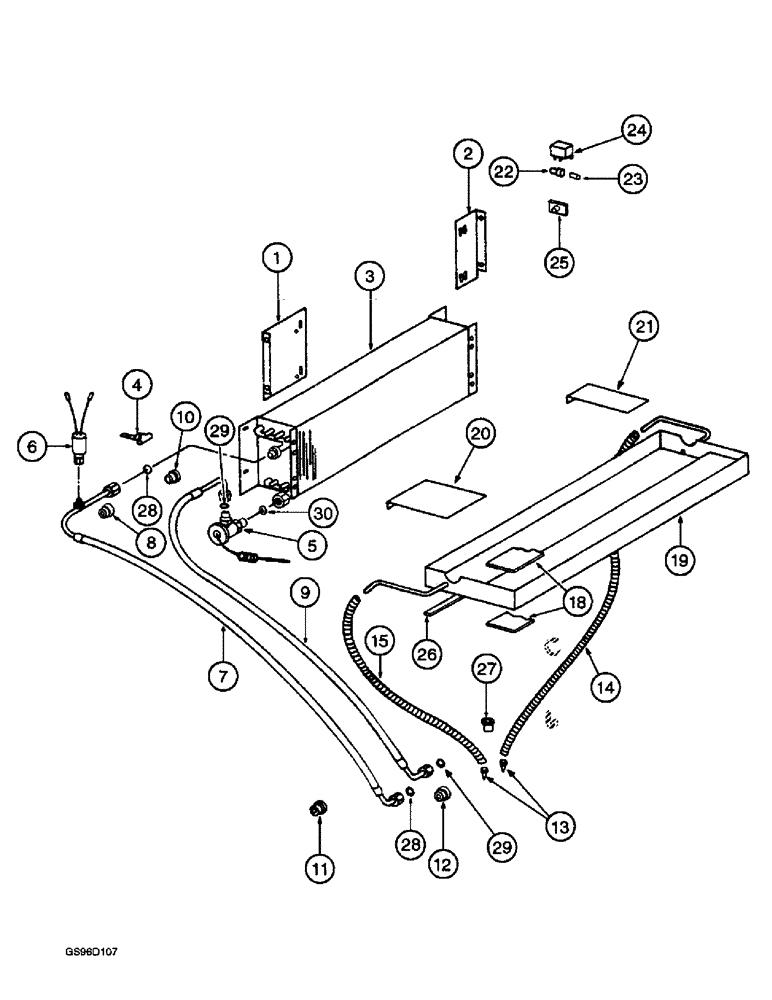

Запчасти Case IH 1400 (9D-16) - AIR CONDITIONER EVAPORATOR (10) - CAB & AIR CONDITIONING

1

1301248C1

SUPPORT

- evaporator mounting, left-hand

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

2шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt 180016)

2шт.

2

1301320C1

SUPPORT

- evaporator mounting, right-hand

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

2шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt 180016)

2шт.

3

118315C1

EVAPORATOR

CORE - evaporator

1шт.

275-1478

SELF-TAP SCREW,1/4" - 14 x 1/2"

SCREW - hex, self-tapping, 1/4 NC x 1/2 inch (Replaces screw 23998R1)

2шт.

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") (Replaces washer 120392) 1/4", SAE

2шт.

4

118444C1

CLAMP

- expansion valve

1шт.

5

1280333C2

VALVE

- expansion (Replaces valve 118305C2)

1шт.

6

111267C4

SWITCH, A/C LOW PRES

SWITCH - low pressure (Replaces switch 111267C3)

1шт.

6

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - low pressure (Replaces switch 111267C3)

1шт.

7

183904C1

A/C HOSE

HOSE - air conditioner, upper

1шт.

8

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- air conditioner, lower hose

1шт.

9

183905C1

HOSE ASSY.

HOSE - air conditioner, lower

1шт.

10

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- air conditioner, upper hose

1шт.

11

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- rubber

1шт.

12

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- rubber

1шт.

13

109239C2

CHECK VALVE

VALVE, CHECK, Condensate drain hose

2шт.

14

REF

INSTRUCTION

HOSE - condensate, right-hand, 140 inch (3556 mm) long, cut from bulk hose 198091C1

1шт.

15

REF

INSTRUCTION

HOSE - condensate, left-hand, 75 inch (1905 mm) long, cut from bulk hose 198091C1

1шт.

18

198144C2

STRIP

- condensate drain pan

1шт.

19

198199C2

PAN

- condensate drain

1шт.

463-6108

BOLT,Hex, #10 - 32 x 1/2"

- machine, No. 10 NF x 1/2 inch (Replaces screw 431942)

4шт.

20

198298C1

SUPPORT

- condensate drain pan, left-hand

1шт.

187-1737

SELF-TAP SCREW,Sltd Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head, No. 10 NF x 3/8 inch (Replaces screw 167156)

1шт.

21

198275C1

SUPPORT

- condensate drain pan, right-hand

1шт.

187-1737

SELF-TAP SCREW,Sltd Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head, No. 10 NF x 3/8 inch (Replaces screw 167156)

1шт.

22

REF

INSTRUCTION

LAMP - air conditioner low pressure indicator

1шт.

23

200557H1

BULB,C2V, #1815, 14V

- No. 1815

1шт.

24

REF

INSTRUCTION

RELAY - air conditioner low pressure indicator lamp

1шт.

25

REF

INSTRUCTION

BLOCK - junction

1шт.

26

REF

INSTRUCTION

STRIP - condensate drain pan, 34-1/2 inch (876 mm) long, cut from bulk seal 187874C1

1шт.

27

195806C1

GROMMET

- condensate hose

2шт.

28

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Upper hose (Replaces O-ring 371544R1)

2шт.

29

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Lower hose (Replaces O-ring 359158R1)

2шт.

30

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk, Expansion valve (Replaces O-ring 360599R1)

1шт.

118468C1

TAPE

- insulation, 12 x 2 inch wide

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

- bulk, 50 foot (15240 mm) roll

1шт.

187874C1

GASKET

SEAL - bulk, adhesive backed, 50 foot (15240 mm) long

1шт.
