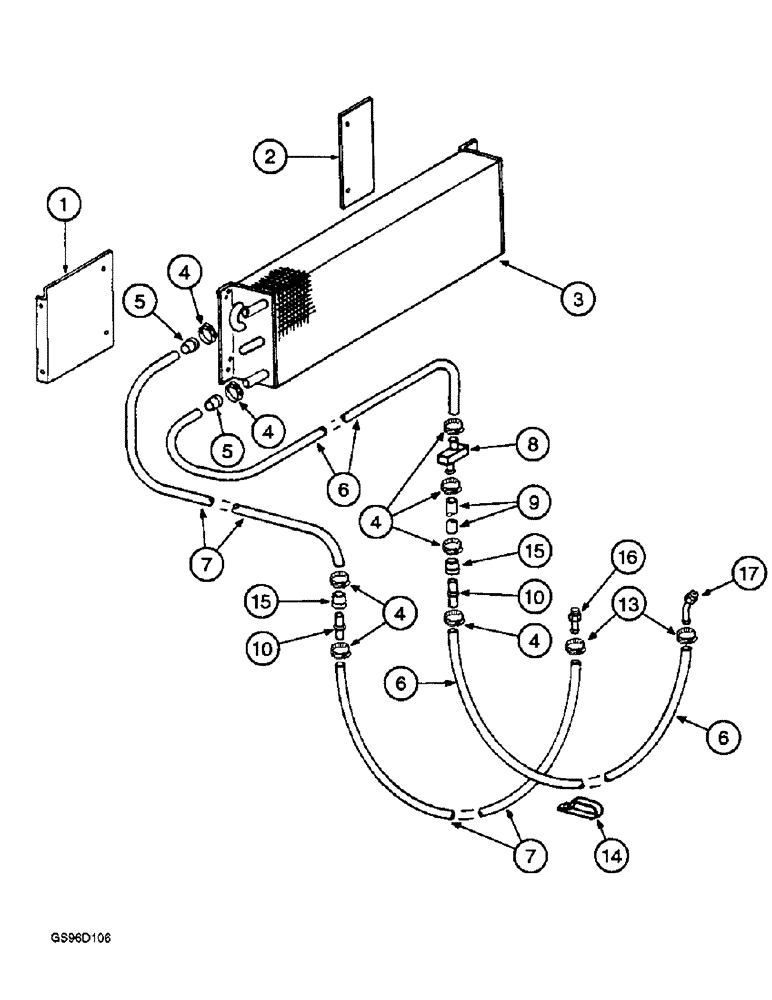

Запчасти Case IH 1400 (9D-14) - HEATER (10) - CAB & AIR CONDITIONING

1

1301248C1

SUPPORT

- heater mounting, left-hand

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

2шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt 180016)

2шт.

2

1301320C1

SUPPORT

- heater mounting, right-hand

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

2шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (Replaces bolt 180016)

2шт.

3

539056R3

CORE

- heater

1шт.

187-480

SCREW,Hex Hd, #8 x 1/2"

- self-tapping, hex head, No. 8 NC x 1/2 inch (Replaces screw 9414587)

4шт.

4

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Adj - Heater hose (Replaces clamps 122316R91 and 995218R1 ) #12, 0.69/1.25 Type F Worm

8шт.

5

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose

2шт.

6

REF

INSTRUCTION

HOSE - heater inlet from valve, 105 inch (2667 mm) long, cut from bulk hose 117724C1

1шт.

7

REF

INSTRUCTION

HOSE - heater return, 72 inch (1829 mm) long, cut from bulk hose 117724C1

1шт.

8

173908C1

VALVE

- water shut-off

1шт.

440-11024

SCREW,Cross Pan Hd, #10-24 x 1 1/2"

- machine, pan head, No. 10 NF x 1-1/2 inch (Replaces screw 159967)

1шт.

544678R1

NUT

- U-spring, No. 10 NF

1шт.

9

REF

INSTRUCTION

HOSE - heater, 144 inch (3658 mm) long, cut from bulk hose 117224C1

1шт.

10

1301342C1

FITTING

- heater hose inlet

2шт.

11

REF

INSTRUCTION

HOSE - heater, 144 inch (3658 mm) long, cut from bulk hose 117224C1

1шт.

12

REF

INSTRUCTION

HOSE - heater, 144 inch (3658 mm) long, cut from bulk hose 117224C1

1шт.

13

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp 2474085R91) #10, 0.56/1.06 Type F Worm

2шт.

14

154695C2

CLAMP

- hose (Replaces clamp 154695C1)

3шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

1шт.

15

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose, 7/8 inch ID

2шт.

16

864440R1

NIPPLE, LUBE

CONNECTOR - hose

1шт.

17

448403C1

ELBOW - pipe adapter

1шт.

17

864438R1

FITTING

CONNECTOR - hose

1шт.

117224C1

HOSE - bulk, no longer used

1шт.
