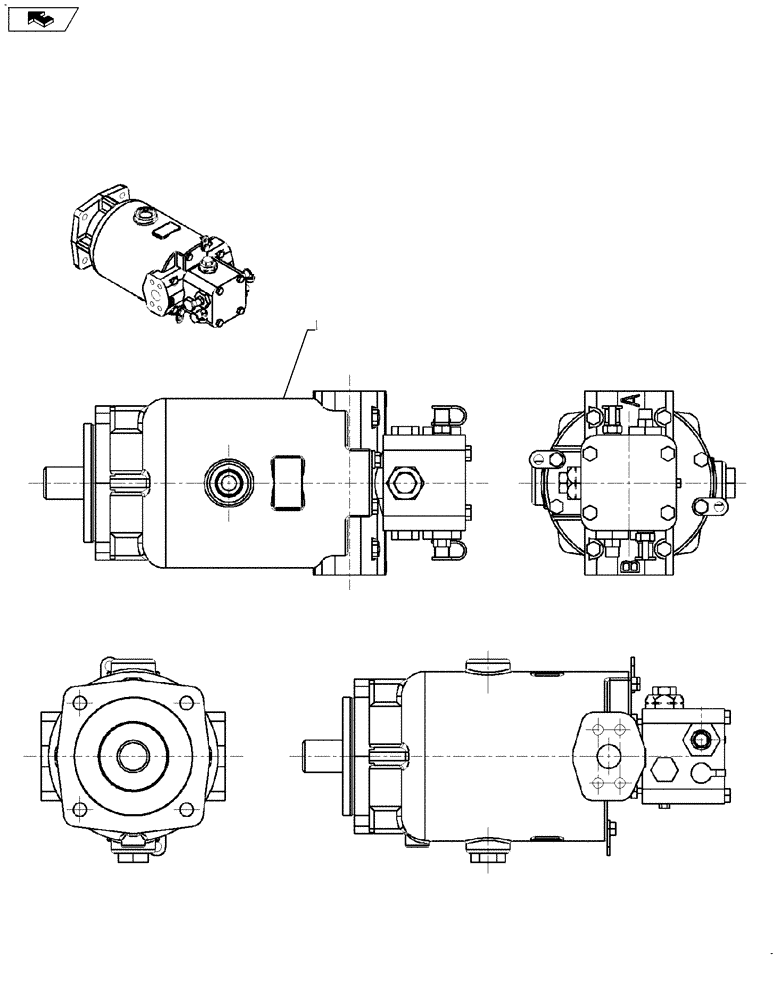

Запчасти Case IH 635 (29.218.05) - HYDROSTATIC MOTOR WITH LIP SEAL (29) - HYDROSTATIC DRIVE

2

403145A1

SEAL

Shaft (Not Shown)

1шт.

3

100-21250

SNAP RING,2.50", Int, #250

(Not Shown)

1шт.

4

37-1516

DOWEL,5/16" x 1"

(Not Shown)

1шт.

5

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

(Not Shown)

1шт.

6

280651

PIN,7.86mm OD x 15.88mm L

(Not Shown)

5шт.

7

163410

PLUG,1-1/16" - 12 ORB

(Not Shown)

1шт.

8

403147A1

SHAFT

Assembly (Not Shown)

1шт.

9

ST863

BEARING CUP,93.22mm OD x 23.81mm W

(Not Shown)

1шт.

10

1980140C1

GASKET,0.38mm Thk

(Not Shown)

1шт.

11

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

(Not Shown)

1шт.

12

530741R1

BEARING CUP

(Not Shown)

1шт.

13

142398C91

SHIM KIT

(Not Shown)

1шт.

14

87034822

BOLT,Hex, 7/16" - 14 x 3", Gr 8

(Not Shown)

6шт.

15

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

(Not Shown)

2шт.

16

193646A2

BLOCK

Kit Inc.17-35 (Not Shown)

1шт.

17

140747C92

SEAL KIT

Inc. 18-20 (Not Shown)

1шт.

18

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

(Not Shown)

1шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

(Not Shown)

2шт.

20

631458C1

RING

(Not Shown)

2шт.

21

140761C1

VALVE PRESSURE RELIE

Inc. 22-23 (Not Shown)

1шт.

22

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

(Not Shown)

1шт.

23

277634

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

(Not Shown)

1шт.

24

193647A1

VALVE PRESSURE RELIE

Inc. 25 (Not Shown)

2шт.

25

222167A1

REPAIR KIT

Check Valve Inc.26-28 (Not Shown)

1шт.

26

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

(Not Shown)

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(Not Shown)

1шт.

28

86642303

BALL,6.42mm OD, Gr 24

(Not Shown)

1шт.

29

145559C91

KIT

Inc. 30-34 (Not Shown)

1шт.

30

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Not Shown)

2шт.

31

86512512

PLUG,7/8" - 14 ORB

(Not Shown)

2шт.

32

145560C1

SPRING

(Not Shown)

2шт.

33

9672438

PLUG,7/16" - 20 ORB

(Not Shown)

1шт.

34

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(Not Shown)

1шт.

35

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

(Not Shown)

4шт.

36

81986

HEX SOC SCREW,5/16" - 18 x 3"

(Not Shown)

2шт.

37

92734C1

SEALING WASHER

(Not Shown)

2шт.

38

R55912

NIPPLE

(Not Shown)

2шт.

39

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(Not Shown)

1шт.

40

H434163

DUST CAP

(Not Shown)

2шт.
