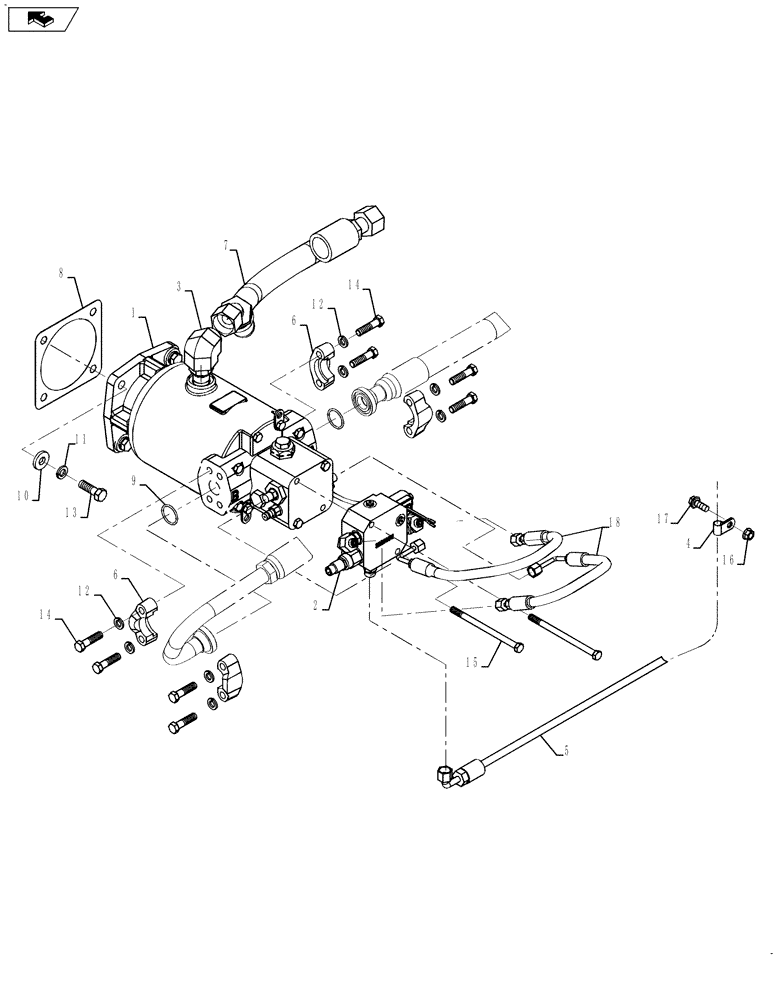

Запчасти Case IH 635 (29.218.04) - HYDROSTATIC MOTOR ASSEMBLY (29) - HYDROSTATIC DRIVE

1

391366A1

HYDROSTATIC MOTOR

Ref. Figure 29.218.05

1шт.

391366A1R

REMAN-HYDROSTAT MOTO

635 (8/10-)

1шт.

391366A1C

EXCH HYDROSTAT MOTOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Ref. Figure 29.218.06

1шт.

3

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

1шт.

4

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

5

447915A1

HOSE

Trans Release Drain

1шт.

6

S97224

CLAMP

Split Flange

4шт.

7

87525428

HOSE ASSY.

PGA Motor Return Right Hand Jump Front

1шт.

8

166506C1

GASKET,0.81mm Thk

1шт.

9

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

4шт.

11

492-11050

LOCK WASHER,1/2"

4шт.

12

492-11044

LOCK WASHER,7/16"

8шт.

13

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

14

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

15

426-696

BOLT,Hex, 3/8" - 16 x 6", Gr 8

2шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

17

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

18

87414064

HOSE,6.35mm ID x 510mm L

2шт.
