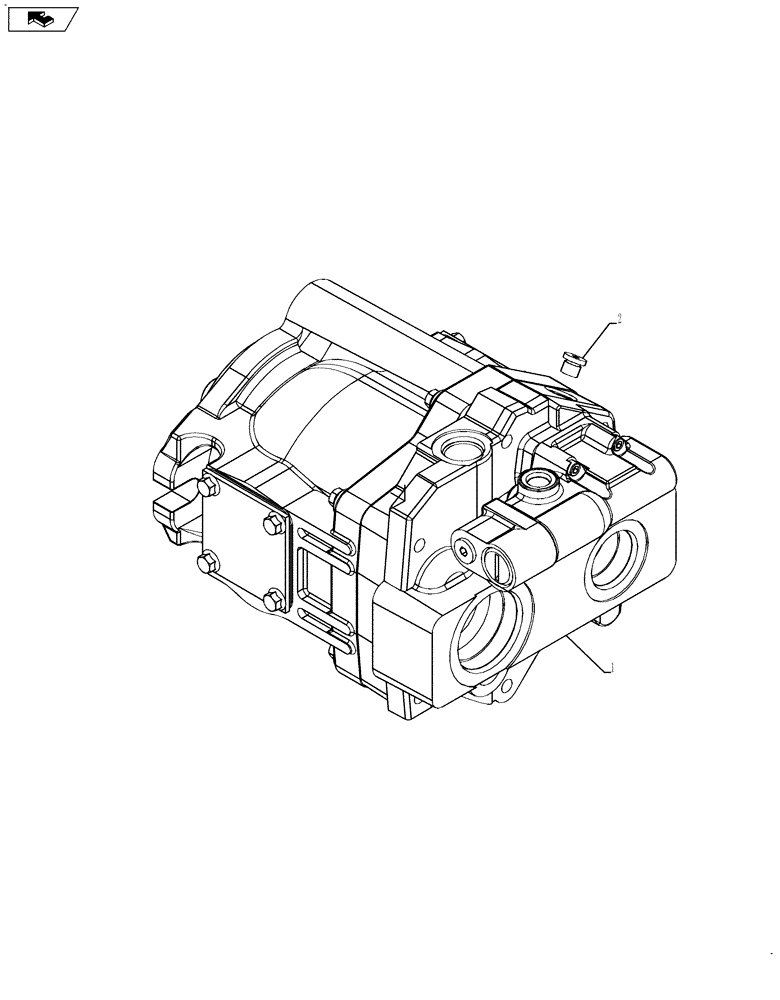

Запчасти Case IH 635 (29.218.03[01]) - AUXILIARY HYDRAULIC PUMP, MY 2011 (29) - HYDROSTATIC DRIVE

1

87423526

HYDRAULIC PUMP,41 CC

Auxiliary, Incl 2 - 24

1шт.

2

86529630

PLUG,Hex Soc, 3/8"-24 ORB

(Not Shown) Inc. 3

1шт.

3

86513328

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

(Not Shown)

1шт.

4

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

Oil (Not Shown)

1шт.

5

100-21175

SNAP RING,1.75", Int, #175

(Not Shown)

1шт.

6

452779R1

KEY,1/4" Sq x 3/4", Par

(Not Shown)

1шт.

7

1263241C1

WHEEL BEARING KIT

Yoke Bearing Inc.8-9 (Not Shown)

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING, Bearing Assembly Swing Yoke (Not Shown)

2шт.

9

145590C1

SHIM KIT

(Not Shown)

1шт.

10

1263242C1

KIT

Shaft Bearing Kit (Not Shown) Inc.11-13

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, Bearing Assembly Front (Not Shown)

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING, Bearing Assembly Rear (Not Shown)

1шт.

13

145582C1

KIT

Spacer (Not Shown)

1шт.

14

1288981C2

KIT

Compensator Kit (Not Shown) Inc.15-19

1шт.

15

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

(Not Shown)

1шт.

16

86992263

GASKET,0.43mm Thk

Compensator (Not Shown)

1шт.

17

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

(Not Shown)

1шт.

18

278548

PLUG,Hex, 7/16"-20 ORB

(Not Shown)

1шт.

19

86632547

PLUG,Hex, 5/16"-24 ORB

(Not Shown)

2шт.

20

87681199

90 ELBOW

(Not Shown)Inc.21-22

1шт.

21

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(Not Shown)

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

(Not Shown)

1шт.

23

1263234C1

SHAFT

Drive, (Not Shown)

1шт.

24

47804892

SHAFT

Charge Pump, (Not Shown)

1шт.

25

409970

COUPLING

Charge Pump, (Not Shown)

1шт.
