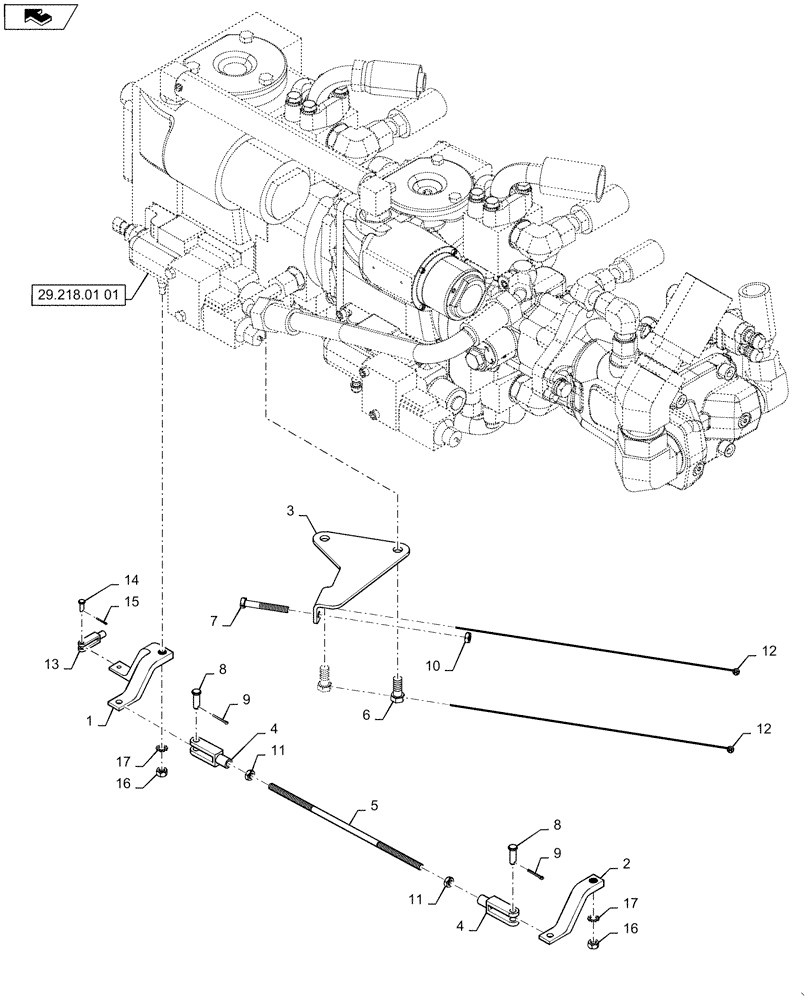

Запчасти Case IH 635 (29.218.01[02]) - HYDROSTATIC PUMP CONTROL LEVER (29) - HYDROSTATIC DRIVE

1

430643A1

LEVER ASSY.

Pump Control

1шт.

2

430647A1

LEVER ASSY.

Pump Control

1шт.

3

442090A1

SUPPORT

Lever Stop

1шт.

4

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

5

418467A1

ROD

Hydro Pump

1шт.

6

121936A1

BOLT,Cross Drilled Hex, 7/16" - 14 x 1", Gr 5

2шт.

7

219618C2

BOLT

1шт.

8

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

9

432-612

COTTER PIN,3/32" x 3/4"

2шт.

10

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

11

425-155

JAM NUT,Jam, 5/16"-24, G5

2шт.

12

12736D

ELECTRICAL WIRE

Governor Seal

2шт.

13

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

14

427-3058

CLEVIS PIN,3/16" x .580"

1шт.

15

432-48

COTTER PIN,1/16" x 1/2"

1шт.

16

425-105

NUT,5/16"-18, G5

2шт.

17

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

2шт.
