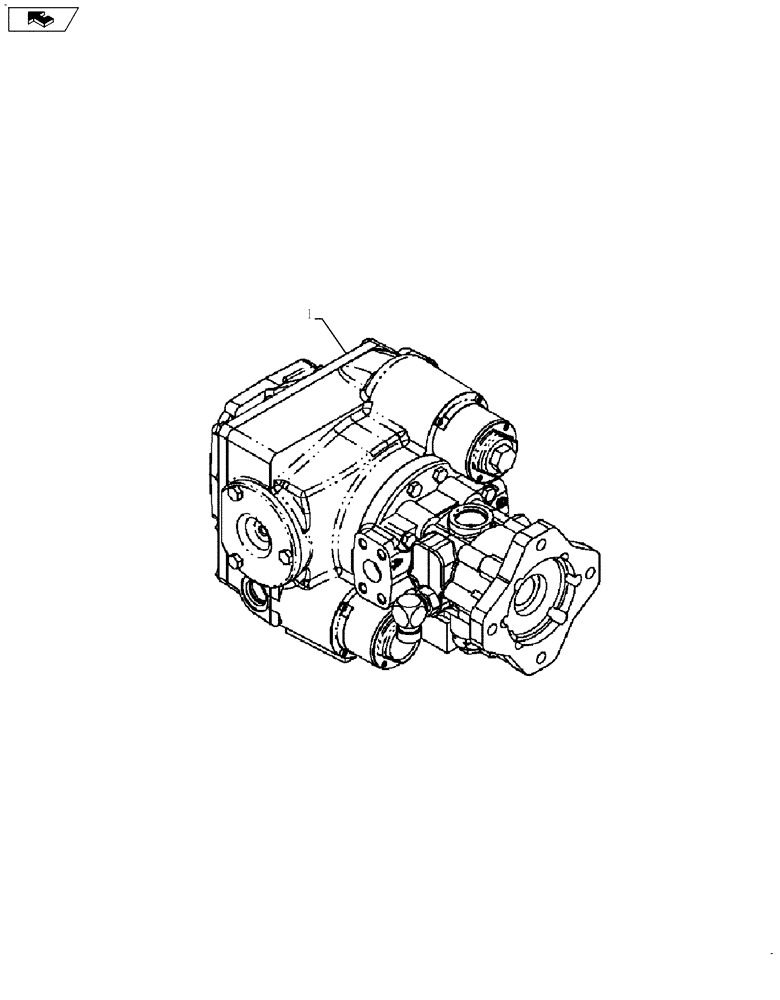

Запчасти Case IH 635 (29.212.03) - TANDEM PUMP ASSEMBLY, HYDROSTATIC (REAR) (29) - HYDROSTATIC DRIVE

1

84147044

PUMP,64 CC

Hydrostatic Assembly 64CC Incl 2 - 70

1шт.

2

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

(Not Shown) Inc. 3-4

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Not Shown)

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

(Not Shown)

1шт.

5

140760C91

SHIM KIT

Package (Not Shown)

1шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Not Shown)

12шт.

7

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

(Not Shown)

1шт.

8

280651

PIN,7.86mm OD x 15.88mm L

(Not Shown)

7шт.

9

142414C1

GASKET

Mounting Flange (Not Shown)

1шт.

10

47810571

SHAFT

Pump (Not Shown)

1шт.

11

100-1356

SNAP RING,#56, Ext

(Not Shown)

4шт.

12

445482A1

CONTROL VALVE

Pump Inc.13-44 (Not Shown)

1шт.

13

76349

PLUG,9/16" - 18 ORB

Inc. 14 (Not Shown)

2шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

(Not Shown)

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

(Not Shown)

1шт.

16

1978048C3

KIT

Assembly Inc 17-18 (Not Shown)

1шт.

17

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

(Not Shown)

1шт.

18

133756C1

GASKET

(Not Shown)

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

(Not Shown)

1шт.

20

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

(Not Shown)

1шт.

21

106446A1

VALVE

Destroke Inc 22-26 (Not Shown)

1шт.

22

256213A1

COIL

Solenoid (Not Shown)

1шт.

23

235656A1

CARTRIDGE

Destroke Inc. 24 (Not Shown)

1шт.

24

235657A1

REPAIR KIT

Destroke Valve Seal Inc. 25 (Not Shown)

1шт.

25

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Not Shown)

1шт.

26

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

(Not Shown)

2шт.

27

197909A2

ADAPTER,9/16" - 18 x 3/4"- 16

Inc 28-32 (Not Shown)

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(Not Shown)

1шт.

29

84-1103

SET SCREW,Hex Soc, #10-32 x 3/16"

(Not Shown)

2шт.

30

86624941

BALL,4.76mm OD, Gr 24

(Not Shown)

1шт.

31

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

(Not Shown)

1шт.

32

86991254

SLEEVE,9.397mm ID x 12.7mm OD x 9.397mm L

(Not Shown)

1шт.

33

197514A2

SWITCH

(Not Shown)

1шт.

34

88040

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Not Shown)

2шт.

35

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

(Not Shown)

1шт.

36

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

(Not Shown)

1шт.

37

80363

HEX SOC SCREW,5/16" - 18 x 1"

(Not Shown)

3шт.

38

83-1106

SET SCREW,Hex Soc, #10-24 x 3/8"

(Not Shown)

1шт.

39

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

(Not Shown)

1шт.

40

100-1125

SNAP RING,#25, Ext

(Not Shown)

2шт.

41

38-1614

LOCK PIN,2.36mm OD x 22.23mm L

(Not Shown)

1шт.

42

61-33132

HEX SOC SCREW,5/16"-18 x 2"

(Not Shown)

2шт.

43

61-33156

HEX SOC SCREW,5/16"-18 x 3 1/2"

(Not Shown)

1шт.

44

133756C1

GASKET

(Not Shown)

1шт.

45

81821889

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(Not Shown)

6шт.

46

140763C91

SHIM KIT

Trunnion (Not Shown)

1шт.

47

9672438

PLUG,7/16" - 20 ORB

(Not Shown)

1шт.

48

278548

PLUG,Hex, 7/16"-20 ORB

(Not Shown)

1шт.

49

86977781

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

(Not Shown)

2шт.

50

140774C1

RETAINER

(Not Shown)

2шт.

51

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

(Not Shown)

6шт.

52

140756C2

GASKET

End Cover (Not Shown)

1шт.

53

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

Cone (Not Shown)

1шт.

54

140759C1

BEARING CUP

Cup (Not Shown)

1шт.

55

86993178

PACKAGE, REPAIR

Pressure Override Kit Inc.56-60 (Not Shown)

1шт.

56

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(Not Shown)

1шт.

57

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

(Not Shown)

1шт.

58

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

(Not Shown)

1шт.

59

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

(Not Shown)

1шт.

60

235419A1

SHIM KIT

(Not Shown)

1шт.

61

1346021C1

ORIFICE

(Not Shown)

1шт.

62

140769C1

CHECK VALVE

Inc. 63-64 (Not Shown)

2шт.

63

229317

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

(Not Shown)

1шт.

64

140770C1

RING

(Not Shown)

1шт.

65

9420892

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 8

(Not Shown)

6шт.

66

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

(Not Shown)

2шт.

67

84164933

PUMP

Hydraulic Pump Assembly, Charge With Auxiliary, Not Shown, Incl 68 - 70

1шт.

68

86512512

PLUG,7/8" - 14 ORB

1шт.

69

133760C2

GASKET

Charge Pump

1шт.

70

84558430

SEAL

Shaft

1шт.
