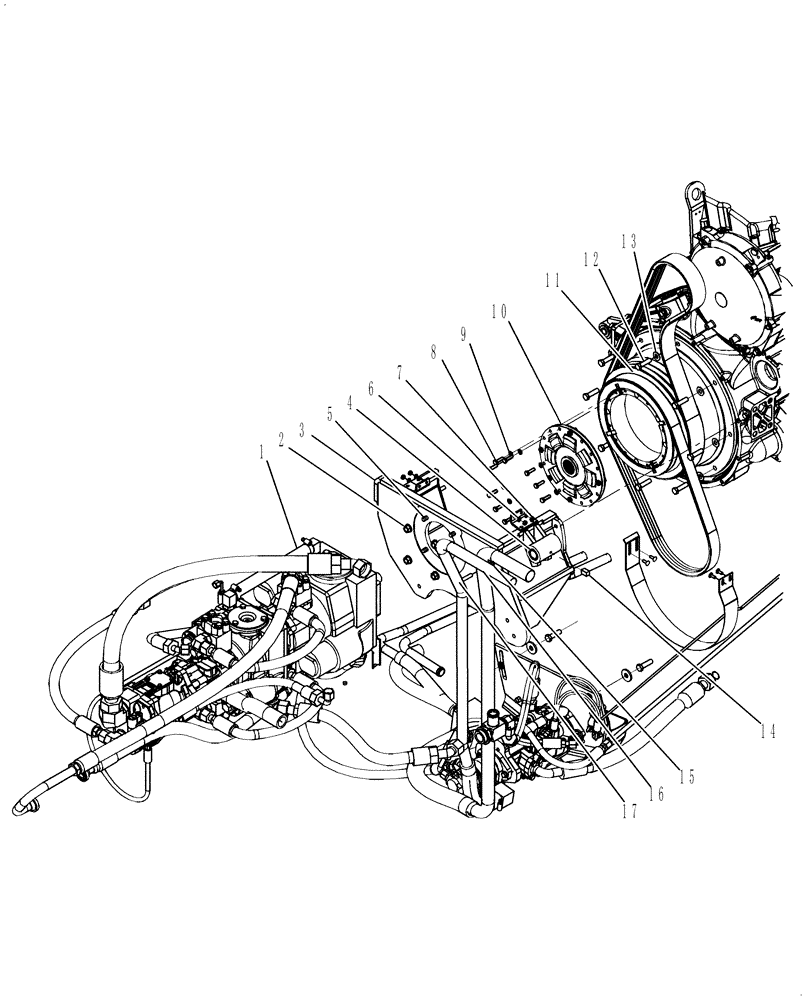

Запчасти Case IH 635 (29.202.01) - FAN PULLEY AND HYDROSTATIC PUMP DRIVE (29) - HYDROSTATIC DRIVE

1

NSS

NOT SOLD SEPARAT

Package, Pump Hydrostatic With Aux Pump

1шт.

2

329-288

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

3

84533583

HOUSING

Housing Assembly, Including 4-5

1шт.

4

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

Oilite

2шт.

5

R46073

STUD

Threaded

4шт.

6

492-11025

LOCK WASHER,1/4"

4шт.

7

425-104

NUT,1/4"-20, Cl 5

4шт.

8

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

12шт.

9

80681

LOCK WASHER,5/16"

12шт.

10

47515059

FLYWHEEL

Flex Drive

1шт.

11

87483419

PULLEY

1шт.

12

120080

BOLT,Hex, M12 x 45, 8.8

8шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

14

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

Lube Fitting

1шт.

15

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

4шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

17

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.
