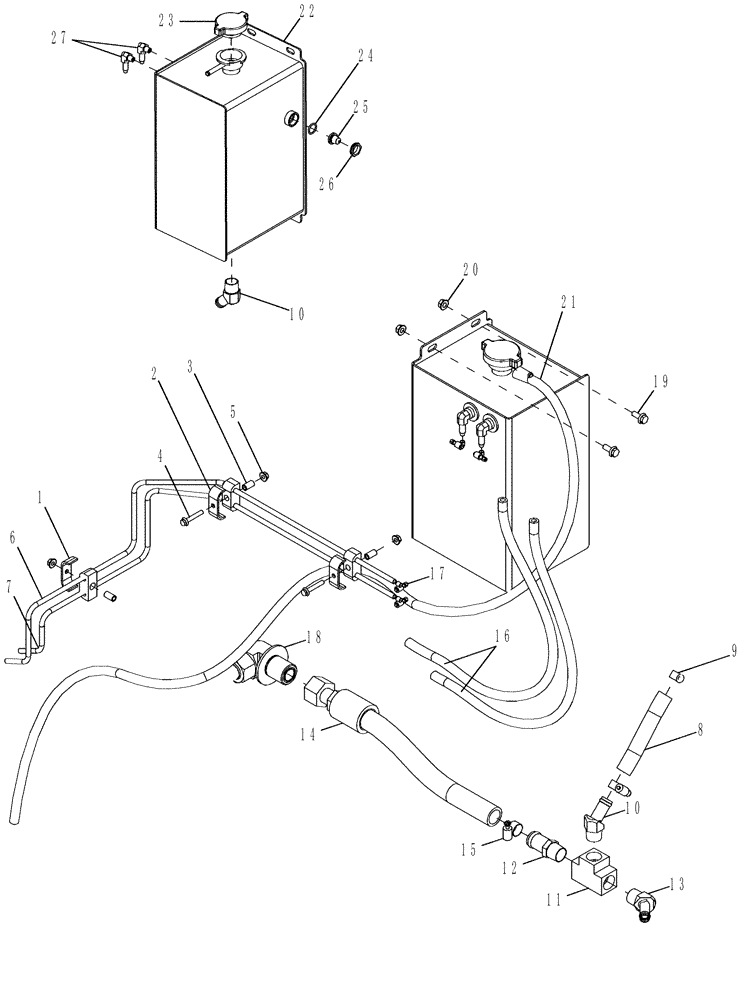

Запчасти Case IH 635 (10.406.04) - DEAERATION SYSTEM (10) - ENGINE

1

418783A1

CLAMP

Tube

3шт.

2

418784A1

PLATE

Tube Clamp

3шт.

3

418785A1

SPACER

Tube Clamp

3шт.

4

409-7424

BOLT,Hex Flg, 1/4" - 20 x 1 1/2", Spcl

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

6

408595A1

VENTILATION PIPE

Engine Vent

1шт.

7

408594A1

VENTILATION PIPE

Radiator Vent

1шт.

8

408599A1

HOSE ASSY.

Deaeration Tank To Tee, 144 mm (5-43/64 in.)

1шт.

9

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

10

217-145

ELBOW,45 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

2шт.

11

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

1шт.

12

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

13

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

1шт.

14

84238299

RADIATOR HOSE

Coolant Makeup

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

16

408605A1

HOSE

Coolant Recovery, 665 mm (26-3/16 in.), Cut From 1254166C2

2шт.

17

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

9шт.

18

201-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

21

408606A1

HOSE

Coolant Recovery, 2187 mm (86-1/8 in.), Cut From 1254166C2

1шт.

22

87626378

TANK

Dearation

1шт.

23

A170241

RADIATOR CAP

103 kpa

1шт.

24

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

25

86990536

LENS

Sight

1шт.

26

86990537

NUT,15/16"

Lens Retainer

1шт.

27

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

2шт.
