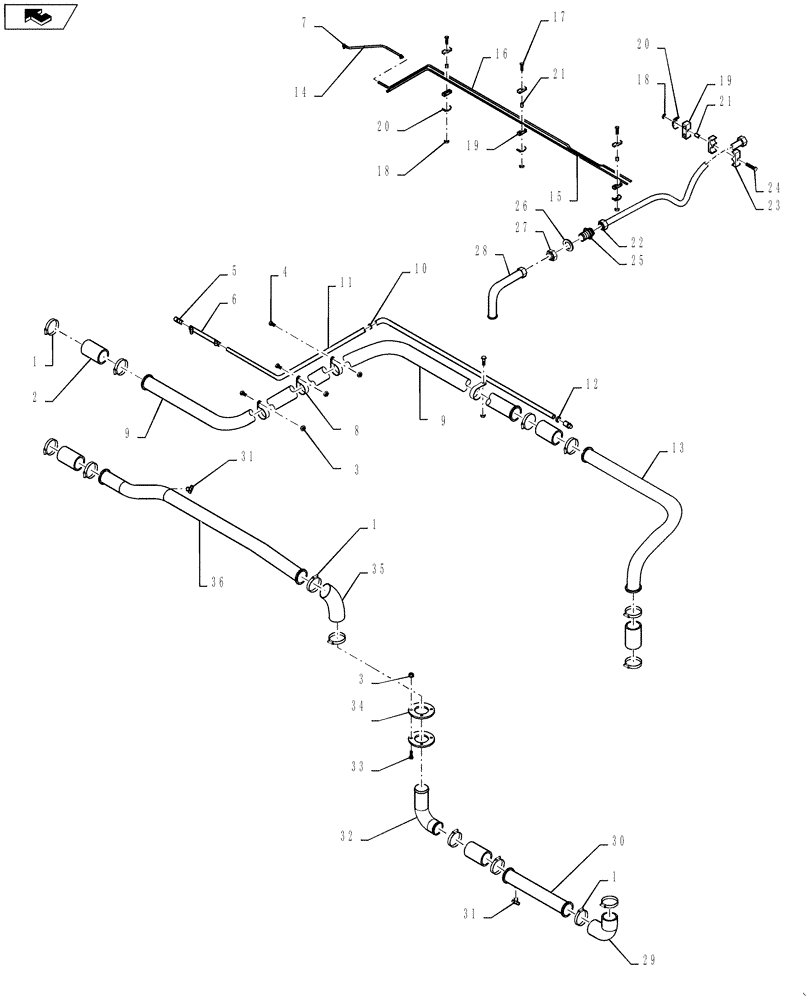

Запчасти Case IH 635 (10.406.01) - RADIATOR SYSTEM (10) - ENGINE

1

84470498

HOSE CLAMP,2.56" - 2.87"

14шт.

2

292755A1

HOSE,57.15 mm ID x 101.60 mm, SAE 20R4 CLASS D1 PER SAE J20

Engine Outlet

5шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

25шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

5

847367

FITTING,5/16" Hose x 1/4" NPTF, Barbed

Stem, Barb Hose Male

1шт.

6

408602A1

HOSE,8.30 mm ID x 175.00 mm

Coolant Recovery

1шт.

7

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

8

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

5шт.

9

84477432

TUBE

Upper Radiator

1шт.

10

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

2шт.

11

84217510

TUBE

Engine Vent

1шт.

12

244105

GROMMET

Rubber

1шт.

13

84215646

TUBE

Upper Radiator

1шт.

14

84153476

HOSE,7.5mm ID x 350mm L

Coolant Recovery

1шт.

15

409133A1

VENTILATION PIPE

Engine Vent

1шт.

16

409132A2

VENTILATION PIPE

Radiator Vent

1шт.

17

409-7424

BOLT,Hex Flg, 1/4" - 20 x 1 1/2", Spcl

3шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

19

418783A1

CLAMP

4шт.

20

418784A1

PLATE

Tube Clamp

4шт.

21

418785A1

SPACER

Tube Clamp

4шт.

22

87523758

HYD TUBE,22.098 mm ID x 1 mm OD x 553.27, 356.8 mm L

Coolant Makeup Outside

1шт.

23

1546028C1

CLAMP,25.4mm ID x 82mm L

Hydraulic Tube

2шт.

24

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

1шт.

25

201-116

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Union

1шт.

26

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

1шт.

27

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

1шт.

28

84169505

RIGID TUBE

Coolant

1шт.

29

86976412

HOSE,59.00 mm ID x 110.00 mm, SAE J20, 20R4 Class D1

1шт.

30

84217284

TUBE

1шт.

31

86982771

VALVE

Drain

2шт.

32

84219804

TUBE

1шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

4шт.

34

84220787

RUBBER SEAL

1шт.

35

397511A1

HOSE,56.40 mm ID x 85.00 mm, SAE J20, SAE 20R4 Class D1

Coolant

1шт.

36

84215718

TUBE

Upper Radiator

1шт.
