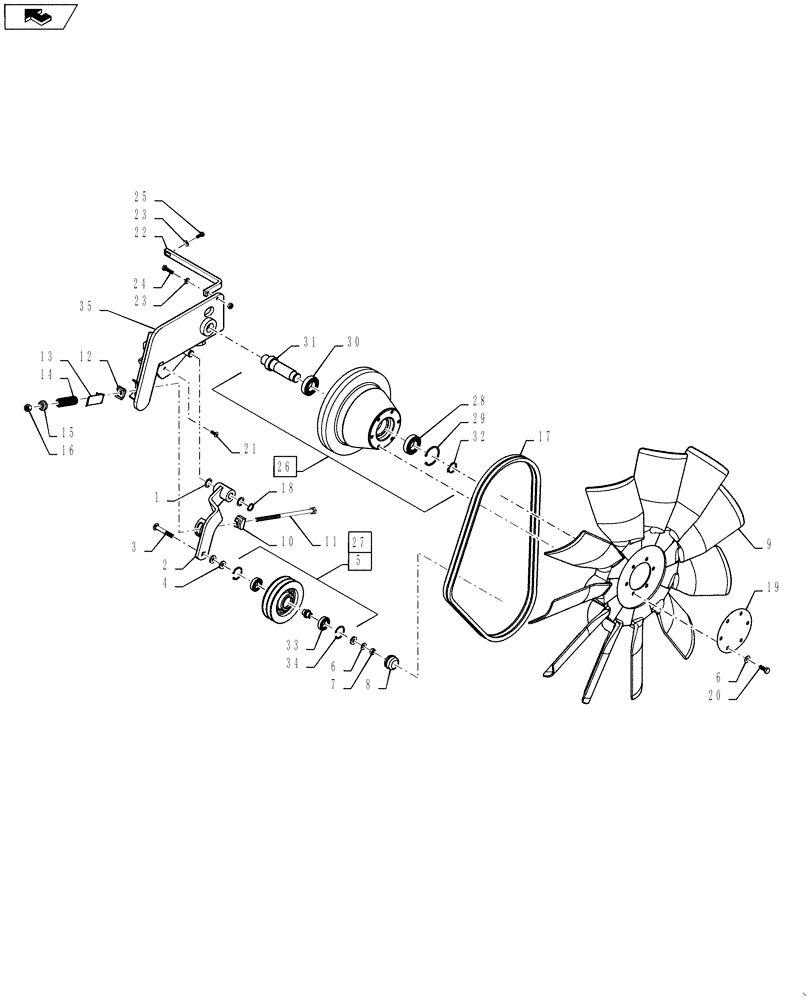

Запчасти Case IH 635 (10.402.03[01]) - ENGINE FAN DRIVE ASSY (10) - ENGINE

1

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

Lock Washer

2шт.

2

87665166

ARM ASSY.

Arm WA Painted

1шт.

3

811-10070

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 70mm, Cl 8.8

Bolt, Carriage SSNK M10 X 70 CL8.8 ZND

1шт.

4

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

Washer

4шт.

5

84170842

PULLEY ASSY.

Pulley Assy, Idler

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

Washer Belleville 10 P

7шт.

7

100016

NUT,M10 x 1.5, Cl 8

Nut, M10 Class 8 ZND

1шт.

8

87540959

CAP

Dust Cap

1шт.

9

84222870

FAN,11 Blades, 883.6mm OD

Fan, Acs 11 Blade

1шт.

10

754131

GUIDE

Guide Block

1шт.

11

84077701

BOLT,Hex, M10 x 250mm, Cl 8.8, Full Thd

RODW. A.

1шт.

12

442398

GUIDE

Guide Block

1шт.

13

84465874

INDICATOR

Indicator

1шт.

14

84069932

COMPRESSION SPRING,25mm OD x 100mm L

Spring Extension

1шт.

15

356728

CUP

Cup

1шт.

16

412141

NUT,M10 x 1.5, Cl 8

Nut, Prev Trq Non-Met M10 CL8 ZND

1шт.

17

87671291

SET OF BELTS,12.70 mm W x 1697.40 mm L

Belt Set

1шт.

18

370024

CIRCLIP,M20, Ext

Circlip, Ext Reg 20mm PHC

1шт.

19

87589697

PLATE

Plate

1шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

Bolt, M10 X 25 Full CL8.8 ZND

6шт.

21

84488523

BOLT,FLAT, M8 x 1.25 x 20mm, Cl 12.9

Screw, Hex SOC FHD M8 X 20 Full 12.9 PLN

4шт.

22

84150448

BAR

Bar

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Washer Belleville 8 P

2шт.

24

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

Bolt, M8 X 30 Full CL8.8 ZND

1шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Bolt, M8 X 20 Full CL8.8 ZND

1шт.

26

84384093

PULLEY,280mm OD

Fan Pulley Assembly (Includes 27-32)

1шт.

27

84170842

PULLEY ASSY.

Belt Pulley A

1шт.

28

274198

BALL BEARING,30mm ID x 62mm OD x 16mm W

Ball Bearing

1шт.

29

370012

RING,M62, Internal

Circlip, Int Reg 62mm PHC

1шт.

30

84438926

BALL BEARING,35mm ID x 72mm OD x 17mm W

Ball Bearing

1шт.

31

84303036

SHAFT

Engine Fan Shaft

1шт.

32

8409215

CIRCLIP

Circlip, Ext Hvy 30mm PHC

1шт.

33

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

Bearing

2шт.

34

300644

SNAP RING,M40, Internal

Circlip, Int Reg 40mm PLN

2шт.

35

84477133

SUPPORT

Pulley Support

1шт.
