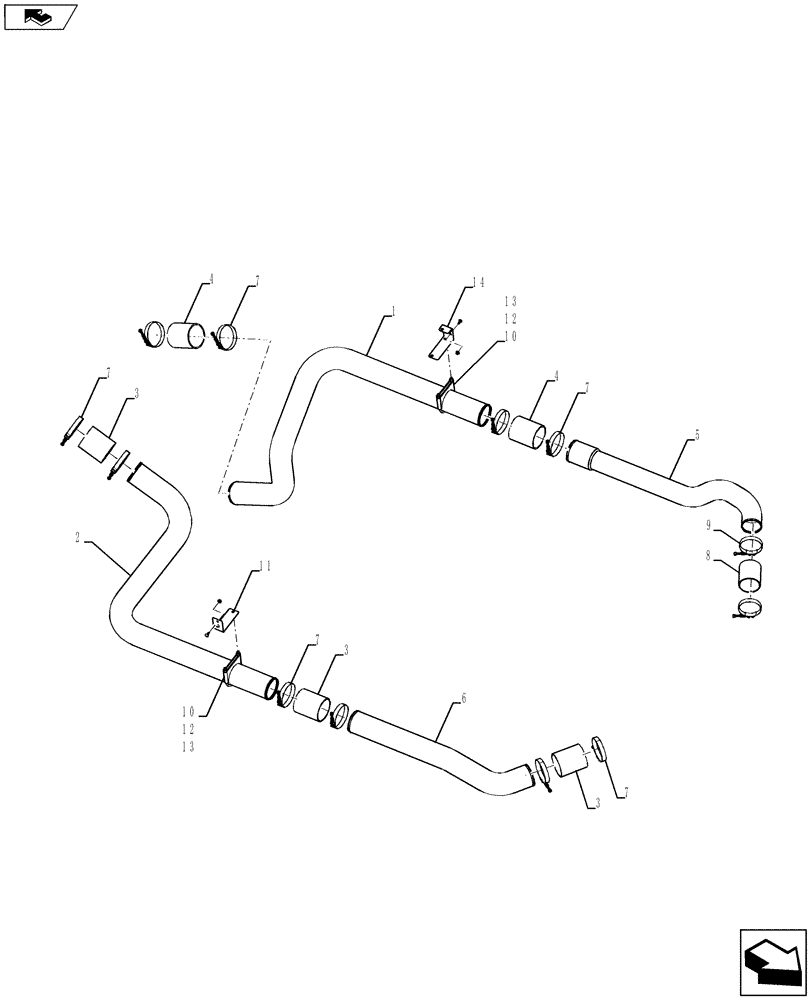

Запчасти Case IH 635 (10.310.02) - CHARGE AIR COOLER TUBE ASSEMBLY (10) - ENGINE

1

84228811

TUBE

Intercooler, Cold

1шт.

2

84228813

TUBE

Intercooler, Hot

1шт.

3

87402761

HOSE

CAC 4" Hot

3шт.

4

87402762

HOSE

CAC 4" Cold

2шт.

5

84138704

RIGID TUBE

1шт.

6

84222904

TUBE

1шт.

7

87420676

HOSE CLAMP,108mm - 115.8mm

T-Bolt Band Clamp Spring Loaded

10шт.

8

87106404

HOSE,88.90mm ID x 110mm

1шт.

9

86976661

HOSE CLAMP,95.25mm - 104mm

Spring, Hose

2шт.

10

87323598

CLAMP

Muffler Clamp

2шт.

11

NSS

NOT SOLD SEPARAT

STRAP

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

84217683

BRACKET

1шт.
