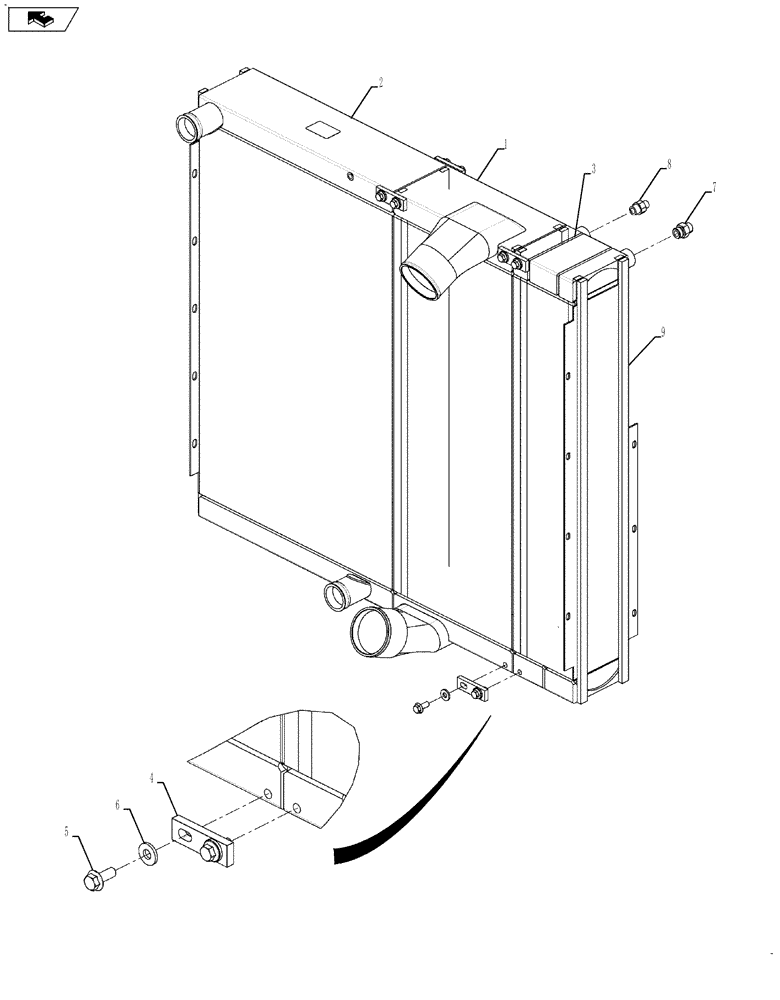

Запчасти Case IH 635 (10.310.01) - AFTERCOOLER (10) - ENGINE

1

84206126

INTERCOOLER

Engine, Serial Range: -YBT016810

1шт.

1

84404698

INTERCOOLER

Engine, Start Serial: YBT016811

1шт.

2

84208619

RADIATOR

Engline, Serial Range: -YBT016810

1шт.

2

84404700

RADIATOR

Engine, Start Serial: YBT016811

1шт.

3

84206123

CONDENSER

Cooler, Serial Range: -YBT016810

1шт.

3

84406728

CONDENSER

Engine AC, Start Serial: YBT016811

1шт.

4

84127156

BRACKET

Dogbone

6шт.

5

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

12шт.

6

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

12шт.

7

84262328

ADAPTER,7/8" - 14 JIC x 3/4" - 16 JIC

3/4" to 7/8 "

1шт.

8

84262329

ADAPTER

5/8" to 3/4", Serial Range: -

1шт.

9

84262353

FOAM

Cooler

12шт.
