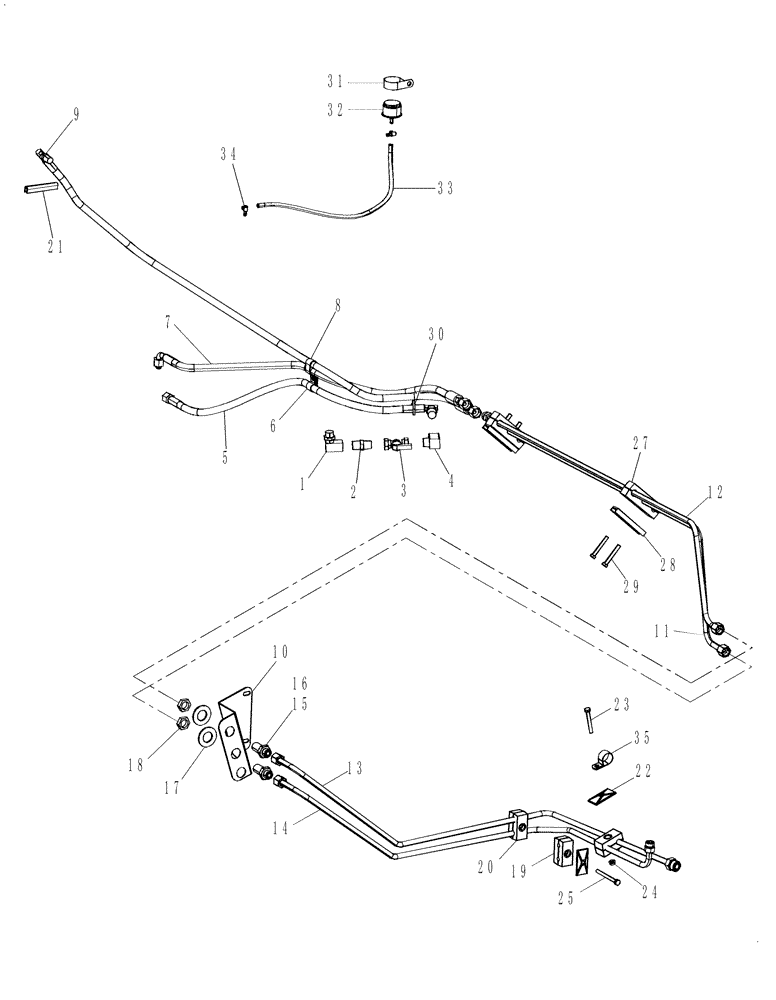

Запчасти Case IH 635 (10.216.01[02]) - FUEL LINE (10) - ENGINE

1

87268286

ELBOW

1шт.

2

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

Nipple

1шт.

3

1345205C1

SHUT-OFF VALVE

Oil

1шт.

4

217-23

ELBOW,90 Degree, 1/2"-14 NPTF, Fem x 1/2"-14 NPTF Male

1шт.

5

84152961

HOSE,10mm ID x 735mm L, SAE 100R6

Fuel Tank To Filter

1шт.

6

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

7

84153098

HOSE,10mm ID x 1000mm L, SAE 100R6

Fuel, Filter To Tube

1шт.

8

620019

CLAMP

Cable Coated

1шт.

9

84153257

HOSE,10mm ID x 1450mm L, SAE 100R6

Fuel, Return, Tank To Tube

1шт.

10

84416655

MOUNTING PLATE

Mounting Plate

1шт.

11

84153668

TUBE ASSY.

Fuel Return

1шт.

12

84153664

TUBE ASSY.

Fuel

1шт.

13

84263683

FUEL TUBE

1шт.

14

84263681

FUEL TUBE

Return

1шт.

15

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Union Inc. 16

2шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

495-11106

WASHER,1", SAE

2шт.

18

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

19

1546025C1

CLAMP

Hydraulic Tube

2шт.

20

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

Hydraulic

1шт.

21

228634A1

PROTECTION STRIP

Trim, Edge

1шт.

22

1347127C1

PLATE

Hose Clamp

2шт.

23

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

25

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

27

84176018

CLAMP

Hydraulic Tube

2шт.

28

87000242

CHANNEL

Back Up Clamp

2шт.

29

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

30

291207C1

CLAMP

Strap

1шт.

31

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

32

86999949

FUEL FILTER

Filter Air Vent

1шт.

33

NSS

NOT SOLD SEPARAT

TUBE, Cut From 7481302, 680mm

1шт.

34

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

35

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

36

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.
