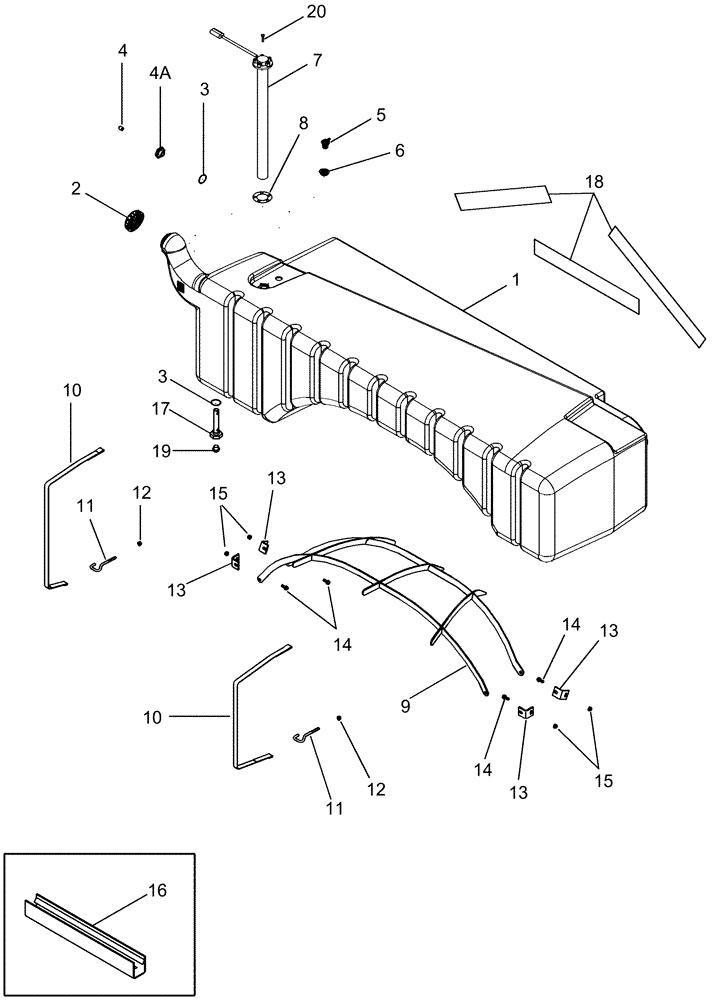

Запчасти Case IH 635 (10.216.01[01]) - FUEL TANK AND SUPPORTS (10) - ENGINE

1

87619389

TANK

Fuel, 200 gal, Inc. 2 - 8, 17, 19, 20

1шт.

2

BN324706

CAP

Inc. One Gasket

1шт.

3

66805

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

2шт.

4

87597959

PLUG

1шт.

4a

87653979

FITTING

1шт.

5

275800A1

VALVE STEM

1шт.

6

255094A1

GROMMET

1шт.

7

87601414

SENDER UNIT

SENDER Fuel Level, Inc. 8, 20

1шт.

8

87268404

GASKET,2.4mm Thk

1шт.

9

434763A1

SUPPORT

Fuel Tank

1шт.

10

353858A1

STRAP

Mounting

2шт.

11

353851A2

SPECIAL BOLT

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

434773A1

ANGLE

4шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

236211A1

PROTECTION STRIP

38 mm (1-1/2"), Cut From 1330108CX

1шт.

16

228634A1

PROTECTION STRIP

89 mm (3-1/2"), Cut From 1330108CX

4шт.

16

236210A1

PROTECTION STRIP

114 mm (4-1/2"), Cut From 1330108CX

5шт.

16

122150A1

PROTECTION STRIP

179 mm (7"), Cut From 1330108CX

5шт.

16

237682A1

PROTECTION STRIP

305 mm (12"), Cut From 1330108CX

12шт.

17

87653976

FITTING

1шт.

18

87638836

FILLER

Fuel Tank

3шт.

19

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

1шт.

20

86585710

SCREW,Phillips Drive, Pan HD, M5 x 25mm, Cl 4.8

5шт.
