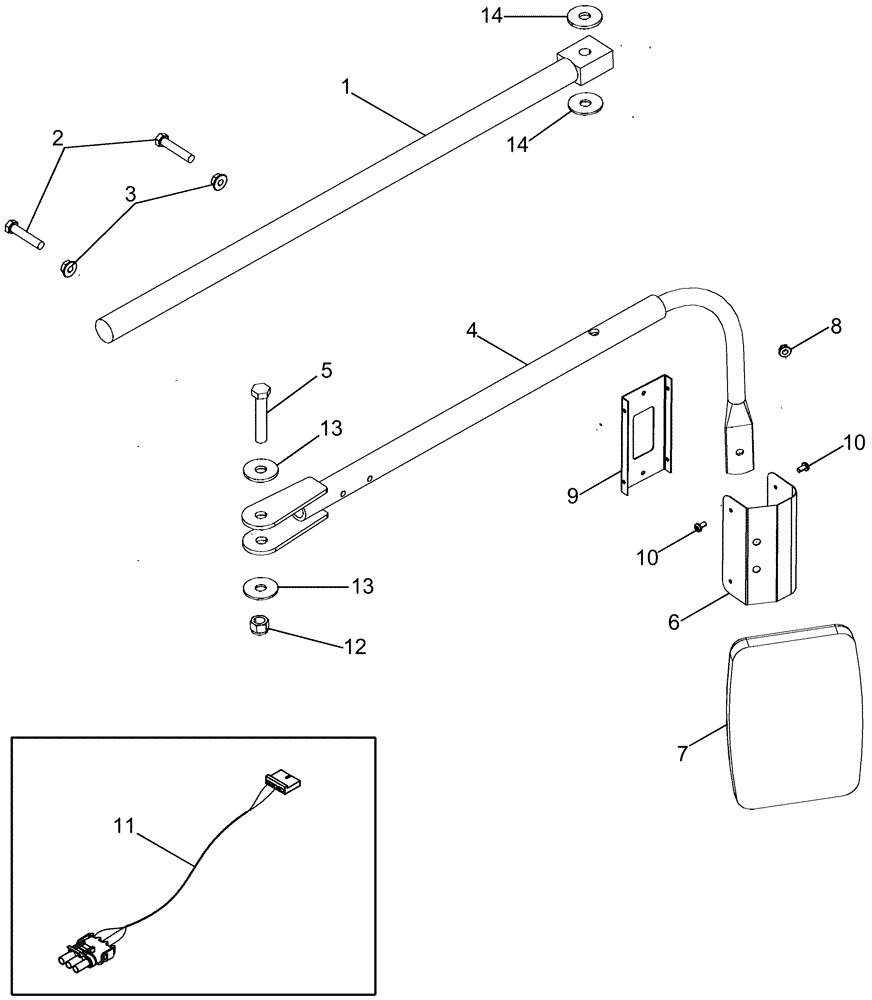

Запчасти Case IH 635 (90.160.06) - CAB MIRROR, RIGHT HAND REAR VIEW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87652442

SUPPORT ASSY.

Mirror Support Inner

1шт.

2

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

2шт.

3

825-51412

FLANGE NUT,M12, Flg Ser

2шт.

4

87617911

SUPPORT ASSY.

Mirror Support Outer, Right Hand

1шт.

5

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

6

291911A1

SUPPORT

1шт.

7

1283403C1

MIRROR

1шт.

8

122379A1

FLANGE NUT

3/8

1шт.

9

127960A1

SUPPORT

1шт.

10

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

4шт.

11

447525A1

HARNESS

Right Hand Mirror

1шт.

12

412066

NUT,M16 x 2.0, Cl 8

1шт.

13

495-81030

WASHER,21/32" x 2" x .179"

2шт.

14

87646316

FRICTION WASHER

Mirror Pivot Friction

2шт.
