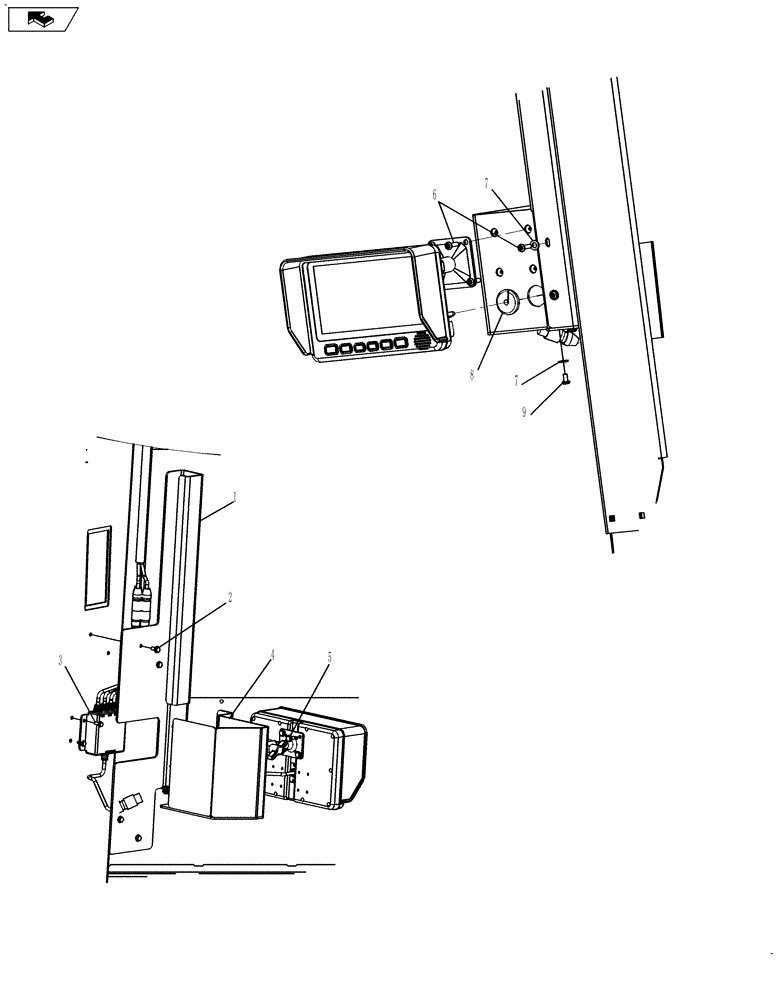

Запчасти Case IH 635 (90.160.05 ) - MONITOR MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84292961

COVER

A Post Wiring

1шт.

2

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

4шт.

3

280-1848

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

4шт.

4

84292799

MOUNTING PARTS

Cab Monitor

1шт.

5

280-5458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

4шт.

6

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

6шт.

7

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Rubber

1шт.

9

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

2шт.
